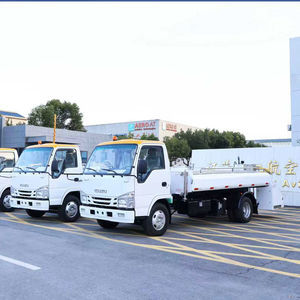

Self-propelled potable water truck JSTY5060GQSE

with lift platformfor airport

Product overview
JSTY5060GQSE Water Service Truck is an airport ground support vehicle manufactured by Jiangsu Tianyi Aviation Industry Co., LTD to supply potable/clean water to aircraft. Built on a Qingling QL1070BEVECHA2Y chassis, it features a rear lifting work platform with night-operation lights, a large-capacity 316L stainless-steel clean-water tank and dedicated pumps. Cab: flat head, single-row seat, 2 doors, 2 occupants. Drive: 4×2. Reported clean-water tank volumes: 5800 L (detailed specification) and 5000 L (summary). Water supply flow: 220 L/min.

Main features

• Rear lifting work platform with lift range 400–3000 mm and night-operation lighting for safe night servicing.
• Large-capacity 316L stainless-steel clean-water tank (specification lists 5800 L; summary also cites 5000 L variant).
• Aircraft potable-water supply system: water pump DL12-60 and motor pump DLDY-1.0/0.8-3 with controller HCDMC005VT3.
• Chassis Qingling QL1070BEVECHA2Y, drive type 4×2, cab for 2 occupants.
• Energy storage: lithium iron phosphate (Ningde era) battery pack, total stored energy 106.95 kWh, battery protection class IP68.

Key specifications

• Model: JSTY5060GQSE
• Vehicle dimensions (L×W×H): 6955 × 2300 × 2250 mm
• Clean-water tank volume: 5800 L (table) / 5000 L (summary)
• Water supply flow / pressure: 220 L/min; 0.25–0.35 MPa
• Platform lift range: 400–3000 mm
• Wheelbase: 3815 mm; vehicle gross mass: 4650 kg; max speed: 80 km/h; driving range: 310 km
• Drive motor: YTD060W23, rated 75 kW / 2000 r/min
• Tank cleaning material / thickness: 316L / 5 mm
• Operating temperature range: −40 to 67 ℃; tyres: 7.00R16 14PR; minimum stable speed: 0.8 km/h

Notes
The documentation contains two different clean-water tank volumes (5000 L and 5800 L). Confirm the required capacity and final configuration with the manufacturer (Jiangsu Tianyi Aviation Industry Co., LTD) before ordering.
