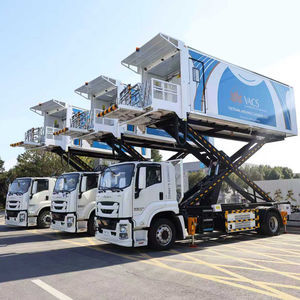

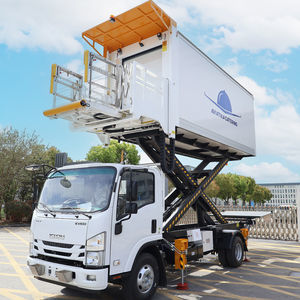

Airport catering truck JSTY5180JSPE

electric

Overview
JSTY5180JSPE electric air catering truck designed for airport onboard meal supply. Pure-electric drive with lightweight structural design and high-strength materials. Chassis model QL1180BEVELQHY (verified chassis gross mass 18 t). Vehicle curb weight: 13,790 kg. Box rated load: 6,500 kg. Platform working height: 2,550–6,200 mm. Total energy storage: 281.92 kWh. Range (reference): 440 km.

Applications

• Airport catering and galley supply operations.
• Positioning and transfer of meals and service items between service vehicle and aircraft door.

Main configuration — key parameters

• Model: JSTY5180JSPE
• Driving motor: GC-TM1300-01
• Driving motor controller: GC-CU1300-01
• Energy storage assembly: L228H01 (total 281.92 kWh)
• Platform working height (mm): 2550–6200
• Box rated load (kg): 6500
• Front platform rated load (kg): 3000 (fixed part 2200 / movable part 800)
• Front platform movable part LR adjustment (mm): 0–700
• Front platform movable part telescopic stroke (mm): 0–600
• Front platform fixed part dimensions (L × W) (mm): 2050 × 2265
• Front platform movable part dimensions (L × W) (mm): 950 × 1200
• Curb weight (kg): 13,790
• Overall dimensions (L × W × H) (mm): 10,500 × 2,500 × 3,700
• Box external dimensions (L × W × H) (mm): 7,500 × 2,500 × 2,400
• Chassis model: QL1180BEVELQHY
• Driving range (reference) (km): 440

Technical specifications

• Total energy storage (kWh): 281.92
• Curb weight (kg): 13,790
• Box rated load (kg): 6,500
• Platform working height (mm): 2,550–6,200
• Front platform capacities and adjustments as listed above
• Drive and control: GC-TM1300-01 / GC-CU1300-01

Safety and notes

• Chassis verified gross mass: 18 t. Overloading or exceeding verified limits can cause serious damage and safety risk.
• Operate and maintain the vehicle within rated loads and specified parameters.
• Use the integrated safety alignment system for accurate positioning at aircraft doors.
