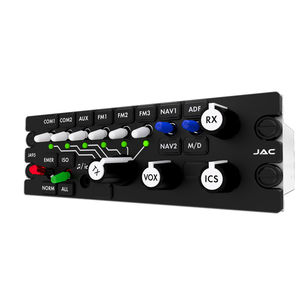

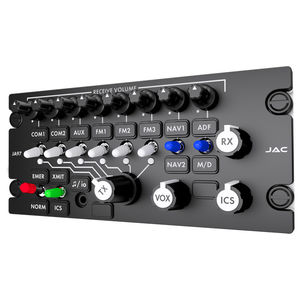

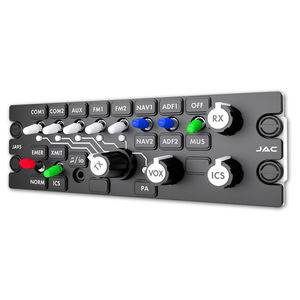

Audio panel JA95-043

for aircraftpanel-mount

JA95-043 Six User - AMS43 Plug and Play - Audio Controller Headsets: 6 Output: 100 mW into each 600 ohm phones Transceivers: 5 +PA, Receivers: 6 Weight: 1.64 lb. [0.74 kg] Max. Power: 14 to 28Vdc Legends: Removable Approvals: FAA TSO C139 & TC CAN-TSO-C139 Installation Kit: INST-95043 Description Features The JA95-043 audio controller is a compact, lightweight unit that incorporates the latest technology, and is compatible with the current industry standard interconnect. The unit will support 6 users: pilot, co-pilot and 4 passengers. By using a Windows® based application (ProCS™), configuration settings may be changed via a 3.5mm jack on the front panel. Field replaceable illuminated legends mean that the dealer only needs to order one version of the controller for many different mission configurations. Features • 6 users • Field configurable settings • Field replaceable legends • Stuck microphone time-out • Adjustable output and input levels • Balanced ICS, & transmit mic. outputs • Configurable audio alert messages • Front panel music input • 5, 14 and 28 Vdc lighting voltage selection • Music muting • Duplex mode transmission for telephone operation • 5.48 inches [139mm] depth behind panel (not including connectors) • Individual mic. gating • Tx capability for pilot, co-pilot • Transmit select annunciators • Connector pin compatible with industry standard
