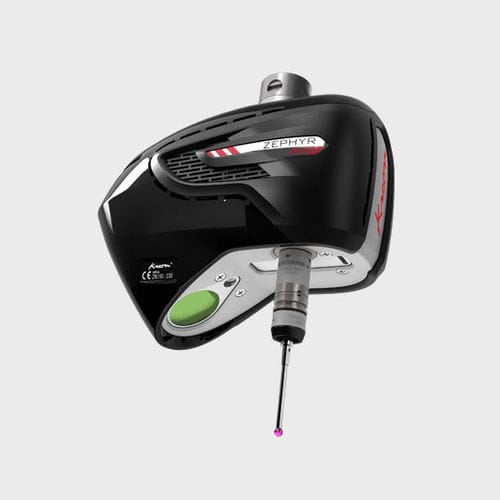

Contact laser scanner Zephyr III series
non-contact3Dfor aeronautics

contact laser scanner
contact laser scanner
contact laser scanner
contact laser scanner
contact laser scanner
Add to favorites
Compare this product


Characteristics

Type
non-contact, contact
Number of axes
3D
Other characteristics
for aeronautics, measurement, automated
Distance range

150 mm (5.9 in)

Accuracy

5 µm

Description

Available with a 150mm or a 50mm laser lines, the Zephyr III 3D scanners are high end products which can easily scan the most complex parts in record time. Their blue laser lines enable to scan black and glossy surfaces deemed difficult. As versatile product, they cover all measurement needs on CMM and can easily be switched on measuring arm, robot, machine tool and optical tracker. A concentrate of 30 years experience The high technological level of the Zephyr III 3D scanner makes it possible to carry out demanding operations such as GD&T analyzes or color mapping, with complete confidence. With a high acquisition frequency (300hz), a 150 mm wide line (Zephyr III 150) and a full integration with automated process, Zephyr III delivers prodigious productivity level. The most accurate Dedicated to high accuracy and resolution scanning on small geometries. No detail can escape it: engraving, drilling, part edge, grooves, etc. The fastest With a 150mm laser line, it scans the largest parts in record time. Ideal for full surface inspection: deformation, assembly, wear, etc. Full automatized integration on CMM A unique software to drive the CMM, the scanner and to process datas. Possibility to automatically calibrate the scanner positions onto the indexing head. Use a probe directly connected under the scanner or switch between scanner and probes by using an auto-change rack. Use PH10 motorised indexing heads (T,M and MQ) with Kreon scanner to control all the faces of the part
