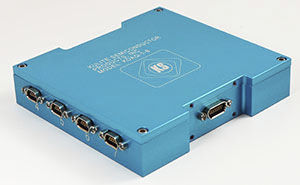

Temperature data acquisition system KDAQ-1-8simultaneous samplingmulti-channelEthernet
Add to favorites
Compare this product
Characteristics
- Measured physical value
- temperature
- Applications
- simultaneous sampling
- Number of channels
- multi-channel
- Options and accessories
- Ethernet
- Display
- without display
- Height
1 in
- Width
4 in
- Depth
4 in
- Weight
99 g
(3.49 oz)
Description
Description
The KDAQ-1-8 data acquisition system is engineered to optimize pressure measurements using Kulite pressure transducers. The communication interface is modular and can be changed by replacing the communication board for adaptation to different test environments. A dual-Ethernet option supports daisy-chained configurations. Each of the eight channels measures both the transducer pressure and temperature using the Kulite 5th-wire temperature measurement method. The KDAQ applies coefficients—either read from the sensor or programmed into the unit—to temperature-compensate the transducer and output corrected data. This enables high-accuracy, high-speed data acquisition from transducers even in very harsh environments where conventional digital electronics may not survive. The system supports IEEE-1588 timing and simultaneous sampling on all channels for precise time alignment across sensors.
Features
Specifications
The KDAQ-1-8 data acquisition system is engineered to optimize pressure measurements using Kulite pressure transducers. The communication interface is modular and can be changed by replacing the communication board for adaptation to different test environments. A dual-Ethernet option supports daisy-chained configurations. Each of the eight channels measures both the transducer pressure and temperature using the Kulite 5th-wire temperature measurement method. The KDAQ applies coefficients—either read from the sensor or programmed into the unit—to temperature-compensate the transducer and output corrected data. This enables high-accuracy, high-speed data acquisition from transducers even in very harsh environments where conventional digital electronics may not survive. The system supports IEEE-1588 timing and simultaneous sampling on all channels for precise time alignment across sensors.
Features
- Wide operating temperature range: -40°F to +255°F (-40°C to +125°C)
- Modular communication board; single or dual Ethernet, RS-485 outputs available
- Simultaneous sampling on all channels
- Includes DAQ and calibration software and LabVIEW® drivers
- Ethernet communication supports IEEE-1588 (PTP)
Specifications
- Model: KDAQ-1-8
- Manufacturer: Kulite
- Channels: 8 channels
- Measured parameters per channel: Pressure and temperature (uses Kulite 5th-wire temperature measurement)
- Temperature compensation: Uses coefficients stored on sensor or programmed into KDAQ to output temperature-compensated data
- Sampling: Simultaneous sampling on all channels
- Timing: IEEE-1588 (PTP) support for precise timing
- Communication: Replaceable communication board for reconfiguration; single or dual Ethernet options; RS-485 outputs available
- Dual-Ethernet: Supports daisy-chained configurations
- Software: DAQ and calibration software and LabVIEW® drivers provided
- Environmental robustness: Designed to output high-accuracy, high-speed data in very harsh environments where digital electronics may not survive
- Input power: 8 to 32 VDC
- Output type: Amplified voltage output
