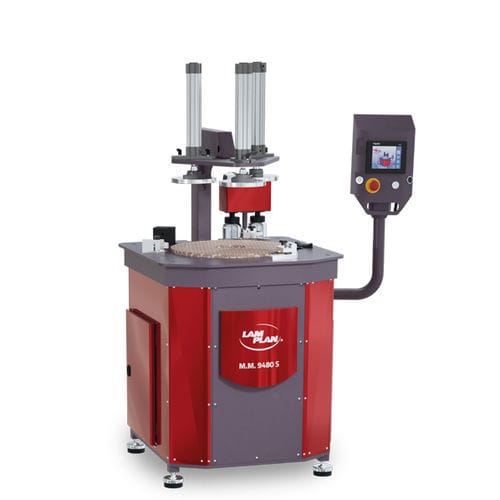

Bench-top lapping machine M.M.9480 S
polishingfor aeronautics

bench-top lapping machine
bench-top lapping machine
bench-top lapping machine
bench-top lapping machine
bench-top lapping machine
bench-top lapping machine
bench-top lapping machine
Add to favorites
Compare this product


Characteristics

Type
polishing, bench-top
Other characteristics
for aeronautics
Inner diameter

182 mm (7.165 in)

Outer diameter

480 mm (18.898 in)

Description

The M.M.9480 S is the new 9000 series small diameter flat lapping machine. This Ø 480 mm lapping machine has all the technical solutions of the large capacity models. Therefore, it is particularly robust and stable. The support plate rests on a trust ball bearing, providing strong stability. The gear motor is protected even in high pressure conditions. Fully equipped in its standard version, it has an electronically controlled 3 cylinder arm. The machine’s smaller size makes it easier for the operator to manipulate all the accessories, such as changing the plate or loading and unloading the rings. All basic functions of this lapping machine built for production are integrated in the 5.7” touchscreen in an intuitive interface based on icons. This allows you to control all distributing units of the LAM PLAN range and to save 12 programmes. Particularly suitable for maintenance workshops, production of small parts and finishing process on high end watchmaking parts. All M.M.9000 series machines are fitted with an integrated modem as standard in order to carry out remote maintenance operations. They are compatible with dedicated LAM PLAN distribution systems and can be optionally fitted with an abrasive and lubricant level sensor. Production data collection in the form of CSV files is possible via the USB interface. Option AUTOPLAN The M.M.9480 S is also compatible with the AUTOPLAN system for plate flatness reconditioning. It enables to manage efficiently the flatness and the grooving of the plate. It is installable and removable in a few minutes thanks to fixation points integrated to the machine. Capacity per ring 1 part Ø 160 mm or 95 parts Ø 10 mm
