Aircraft jack 1697.50

mechanical

Overview

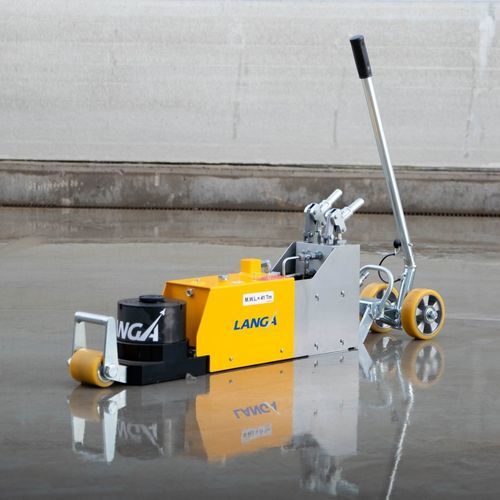

The 1697.50 is a 41 t Axle Jack Flight Kit fitted with a manual double independent hand pump. The jack is supplied with a handle and retractable wheels to facilitate transport and accurate positioning under aircraft. Its design and construction meet requirements for onboard flight kit operations and it is suitable for use on MLG and NLG of major aircraft types.

Applicability
NLG | MLG | CLG
CS100/300, A330 MRTT, DC10, B767-400ER, B767-400, B767-200-300, IL96, MD11, A310, A330, A340-200-300, B707, B757, B777, A320 FAMILY, A300, A380, B787, DC8, ERJ170, ERJ195, L1011, B737 | C601, C602, TBM 700, ERJ110, Learjet 31/51, SAAB 2000, Bae Jetstream 41, Learjet 85, Lockheed Jetstar C-140, ERJ120, Falcon 2000/2000 EX, SAAB 340, Global Express, Falcon 10-100, Falcon 50/50 EX, Bae 146-100 / AVRO RJ70, Fokker 70, C235, C295, ARJ21, CS100/300, ERJ145, Fokker 100, CRJ1000, B717, MC21, P3 Orion, MD80, SSJ100, A310, ATR42, ATR72, B707, B757, A320 FAMILY, C919, DC8, DC9, ERJ170, MD90, Q400, A220, B737, C130, Narrow Body UNIV (A320 Fam + B737 + A220+ EMB 170/195) |

Standard Features

• Double independent hand pump for high and low pressure, with safety valve.
• All functional parts and towbar protected against weather and rough operation.
• Skydrol resistant paint, yellow RAL1028.
• Salt bath nitrided and polished cylinder sections.
• Retractable wheels with one handle to ease transport and positioning.
• Tested to 150% vertical and 15% lateral nominal load.
• CE mark in accordance with EN-12312-19.
• Wooden closed shipping box.

Optionals

• Special paint colors.
• Inflation kit for axle jacks (pneumatic pump powered by wheel nitrogen) (PN 1387.50.8000.00).
• Pneumatic high-flow pump. Max. inlet pressure 150 PSI. Quick auto-retract pneumatic system.
• Detachable hydraulic cylinder for remote operation.
• Reusable transport case.
• Manometer calibration by a certified laboratory.

Related Equipment

• Universal Jack Tester (PN 1542.00).

Technical specifications

• Product code: 1697.50
• Denomination: FLIGHT KIT
• Capacity: 41 t (41 tonnes)
• Type: Axle Jack Flight Kit
• Pump: Manual, double independent hand pump for high and low pressure with safety valve
• Transport features: Handle and retractable wheels for ease of transport and positioning
• Finish: Skydrol resistant paint (yellow RAL1028)
• Cylinder: Salt bath nitrided and polished cylinder sections
• Testing: Tested to 150% vertical and 15% lateral nominal load
• Compliance: CE marked in accordance with EN-12312-19
• Packaging: Wooden closed shipping box
• Available optionals and accessories: inflation kit (PN 1387.50.8000.00), pneumatic pump, detachable hydraulic cylinder, reusable transport case, manometer calibration
• Related test equipment: Universal Jack Tester (PN 1542.00)
