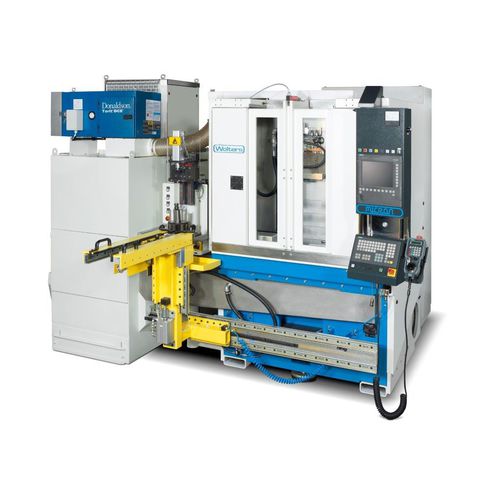

Aeronautic grinding machine MACRO-SK

The MACRO-SK is a grinding machine especially designed for machining the internal contours of stators, and it sets new standards in efficiency and precision for machining the internal diameter of stators. The machine concept of the Macro-SK enables the user to grind various types of stators on the machine, e.g. Gerotor and Geroller. The machine has two spindle arms when fully equipped. During grinding, these spindle arms are lowered in a vertical direction into a stack of stators that are clamped in a fixture. The vertical grinding direction proves to be a major advantage in this regard compared to other machine concepts, because the cooling lubricant is channeled specifically into the grinding gap, thus achieving larger grinding feed values. The grinding time, and thus the entire cycle time of the process are reduced by having higher grinding feed rates. The maximum stack height in the fixture is approx. 100 mm, with the benefit that several stators can be ground at the same time, depending on the component thickness. The compact, space-saving design reduces infrastructure costs thanks to the small amount of floor space taken up. A completely newly developed acoustic emission system supports precise and economical dressing of the grinding wheels, and is additionally used for initial cut control in order to monitor the grinding process. Optionally, the machine can be equipped with an RFID reader. RFID chips that are integrated into the corresponding fixtures store information about the CNC program number and technology data, for example. As a result, the correct machining steps are performed automatically after the fixture has been loaded.
