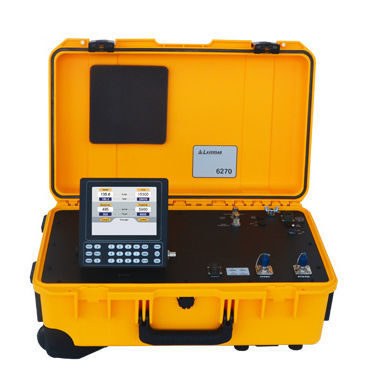

Pressure tester 6270

pitot-staticfor altimetersbattery

The Model 6270 is a Pitot Static tester designed for RVSM-compliant aircraft capable up to 650 knots. The Model 6270 is used to perform leak-checks and accuracy checks on the Pitot Static systems of RVSM aircraft. Accuracy checks are typically performed on altimeters, airspeed indicators and VSI’s. The Model 6270 is equipped with a Remote unit with large keypad and display, a removable 8-hour battery (optional), wide operating temperature (optional), and “profiles” to accelerate testing. Calibration is required only once a year. The 6270 is WiFi-enabled, which enables wireless remote control using an iPad or other tablets. The Model 6270 is approved for most business jets. Pressure function Range: 1 to 32 inHg Resolution: 0.001 inHg Accuracy: ±0.003 inHg Units: inHG, mbar, psi, mmHg, kpa Pressure Rate Range: 0 to 30 inHg/min Resolution: 0.001 inHg/min Accuracy: ±1% of rate Units: pressure-units/min Altitude function Range: -2000 ft. to 60,000 ft. Resolution: 1 foot Accuracy: ± 3 ft. @ 0 ft. ± 4 ft. @ 10,000 ft. ± 6 ft. @ 20,000 ft. ± 9 ft. @ 35,000 ft. ± 18 ft. @ 50,000 ft. Units: Feet, Meters Altitude Rate function Range: 0 ft/min to ±15,000 ft/min Resolution: 1 ft/min Accuracy: ±1% of rate of climb Units: Feet/min, Meters/sec PITOT OUTPUT Pressure Function Range: 0 to 30 inHg (differential) Resolution: 0.001 inHg Accuracy: ±0.003 inHg Pt Units: inHg, mbar, psi, mmHg, kpa, EPR Qc Units: inHg, mbar, psi, mmHg, kpa
