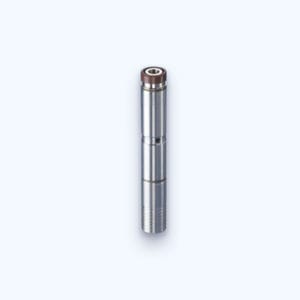

Hydraulic fluid valve

selectorfor aircraftemergency

This valve configuration is typically used to select between the main hydraulic system and the emergency backup that’s biased in the normally closed port. Its non-interflow design means that its three ports are never open simultaneously. These valves can also be used to extend a large unequal area actuator, where reduced actuation force may be permissible in one direction. Lee spring-biased shuttle valves are available in sizes from 0.187 to 0.500 of an inch.
