ADS-B receiver 1090ES RX
for air trafficfor aircraftTSO

ADS-B receiver
ADS-B receiver
Add to favorites
Compare this product


Characteristics

Type
receiver
Applications
for air traffic
Domain
for aircraft
Other characteristics
TSO

Description

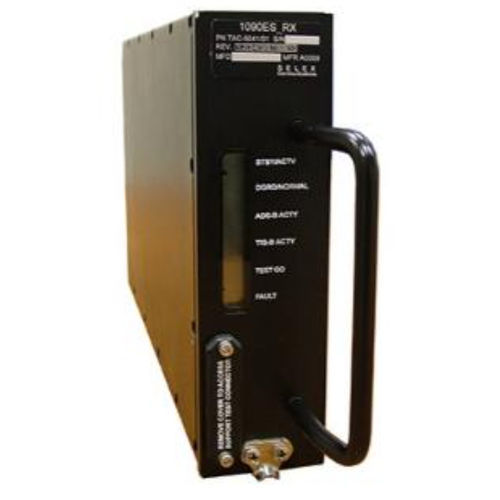

The 1090 Extended Squitter Airborne Receiver is a space-efficient, cost-effective solution for the upgrading (retrofit/forward-fit) of aircraft with a full and Air Traffic Situational Awareness (ATSAW) capability according to the current air traffic management regulations. The company has designed and manufactured the 1090 Extended Squitter Airborne Receiver (herein referred to as 1090ES RX) to enable ADS-B7TIS-B applications and services for civil Air Transport and general/business aviation. The 1090ES RX is a space efficient, cost-effective solution for the upgrading (retrofit/forward-fit) of aircraft with a full and Air Traffic Situational Awareness (ATSAW) capability according to the current air traffic management regulations. 1090ES RX functions are fully compliant to RTCA DO-260 and 260A MOPS. 1090ES RX IS COMPLIANT TO FAA TSO C166A. It receives Mode S squitters (DF17, DF18 and DF19) and performs message decoding and checking of validity (Basic Configuration). It can be upgraded with full ADS-B/TIS-B processing capability through software download (Enhanced Configuration). MAIN CHARACTERISTICS 1090ES RX is provided with two completely independent receiving and processing channels for redundancy and diversity operations. It implements an enhanced reception technique that allows guaranteed high performances in high density areas of air traffic and/or in high electromagnetic pollution environments (signal overlapping conditions). 1090ES RX is a low volume (2 MCU) and light equipment that can be inter faced with standard multifunction displays and/or traffic computer and connected with standard antennas being compatible with existing avionics architecture.

Catalogs

1090ES RX
1090ES RX
4 Pages
