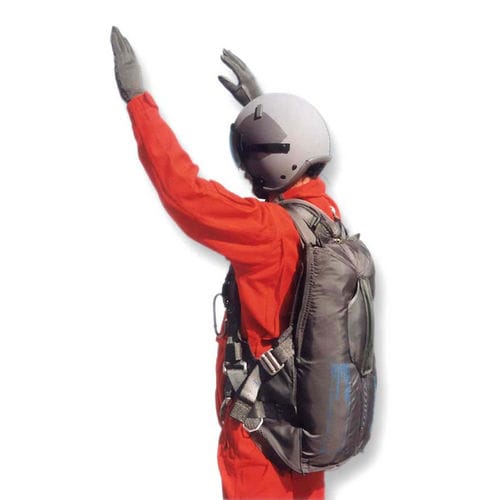

Emergency parachute PAR-2000-00

single place

The BA-22 Bailout Kit is a complete automatic configuration of a back-style, high speed parachute that incorporates bail out oxygen and emergency devices. The Bailout Kit, P/N: LSI-2002-22, is configured for use in fixed wing aircraft, such as: C-141, C-130, KC-135, B-52, C-5, F-5, T-37, T-38, A-37 and F-100. NSN: 1670-00-940-0787 Application For bailout, the crewmember may elect to attach the survival kit, part number LSI-7412-00. To execute bailout above 14,000 feet, the parachute release is armed and the emergency oxygen is activated. The parachute will automatically deploy at 14,000 (+ / -500) feet. At this time, the crewman will activate the 4 line release for maneuverability and deploy the survival kit. At altitudes below 14,000 feet, the crewman will pull the manual ripcord when clear of the aircraft and follow the same procedures as outlined above. In either case, for landing, the crewman will steer the parachute so that he is facing into the wind, if possible, to reduce the potential for injury. After landing, one or both of the parachute release fittings may be activated to prevent dragging.
