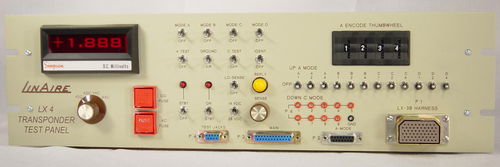

Avionics tester LX-4

aeronauticaldigital

Features A 4 Digit Digital meter is provided to monitor AC and DC voltage and current to the unit under test. Operates AC and DC units. Input fusing of voltages is provided. An ON-STBY and STBY-OFF switch control the unit in on-off and stand by operation. A Mode encoding is accomplished with the digital A Mode thumbwheel control or the pulse identified toggle switches. C Mode encoding is effected by a toggle switch selector for each C Mode pulse. Four mode controls are incorporated, one for each mode. Test control is provided for A and C Mode. Controls are provided to select LO SENSE, IDENT, 14 OR 28 VOLT operation, REPLY INDICATOR, and REPLY SENSE. The LX-4 is an expressive epoxy LinAire tan with dark brown lettering with knobs of brown and gold. The finish is extremely durable and the decorator colors blend well with today's multi-colored test equipment. The LX-4 is 5.25" high, 19" wide, and 5.25" deep and has a cabinet back that is suitable for rack mounting or stand alone.
