Palletized trolley SP2 AS

palletized trolley
palletized trolley
palletized trolley
Add to favorites
Compare this product


Characteristics

Type
palletized

Description

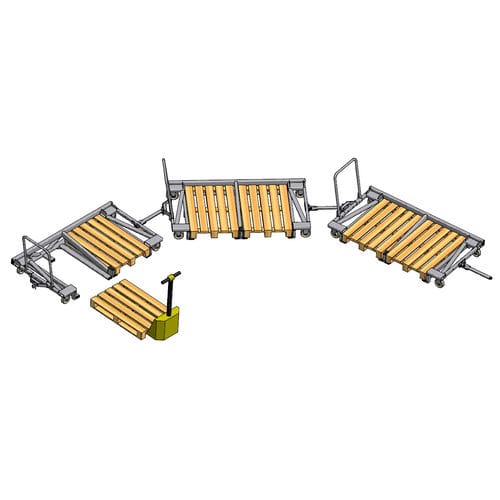

It can be as easy as that double pivot steering for holding 2 load carriers loading and unloading with hand pallet truck possible coupling & self-locking drawbar Product details dimensions outside l x w x h in mm: 2565 x 1269 effective surface l x w x h in mm: each storing position: 1200 x 800 effective depth in mm: 70 loading capacity in kg: 1000 max. velocity in km/h: 6 max. towing capacity in kg: 3000 technical data: 4 wheel double pivot steering per rope hoist stable welded steel construction, zinc-plated for holding 2 load carriers at right-angles to the direction of travel (opening on the right) loading and unloading with hand pallet truck possible incl. coupling and self-locking drawbar plastic cover flaps serial running gear: 4 castors, polyurethane tread, Ø 160 mm, non-marking, green, 75° Shore A castors with ball bearings optional: weather protection Double-pivot steering - particularly manoeuvrable DIN A5/A4 clipboard
