Air diffuser BLQ

Overview

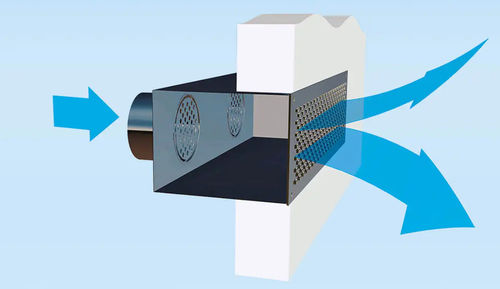

The BLQ step diffuser provides effective ventilation for large rooms and is particularly suitable for cinemas, theaters and concert halls.

Application & Installation
Designed for installation in a pressure floor. Air intake can be arranged, for example, below the window front via a strip-type air box. The diffuser can be used with low cooling loads or combined with static cooling surfaces to supply the required conditioned fresh air volume flow.

Key features

• Even air distribution without draughts at high temperature differences
• Discreet appearance due to stepped recessed installation, integrating with existing architecture
• Individual colour design possible in all colour systems (e.g., RAL, Pantone); special designs such as stainless steel on request
• Low-turbulence displacement airflow with long jet penetration

Design / Options
Optionally available with a throttle element. Custom colors and special materials available on request.

Technical Data (summary)
Data for LpA = 35 dB(A):
Supply air flow rate [m3/h]: up to 200 per diffuser (depending on size)
Pressure loss [Pa]: < 10
Temperature difference (room air - supply air) [K]: 1 - 6
Sound power level [dB(A)]: ≤ 35
Height above floor [mm]: 122
Dimensions (length x height in mm): max. 1340 x max. 240
Depth [mm]: 103

Impressions / Use cases
Typical applications include seating steps and stepped seating areas in theaters, concert halls and similar large rooms where discreet, low-turbulence displacement supply air is required.

Technical specifications

• Model / series: BLQ
• Supply air flow rate: up to 200 m3/h per diffuser (depending on size)
• Pressure loss: < 10 Pa
• Temperature difference (room air - supply air): 1 - 6 K
• Sound power level: ≤ 35 dB(A)
• Height above floor: 122 mm
• Maximum dimensions (L x H): max. 1340 x max. 240 mm
• Depth: 103 mm
• Design / options: throttle element available; individual colour design (RAL, Pantone, etc.); special designs (e.g., stainless steel) on request
• Installation: for step / pressure-floor installation; air intake via strip-type air box possible
