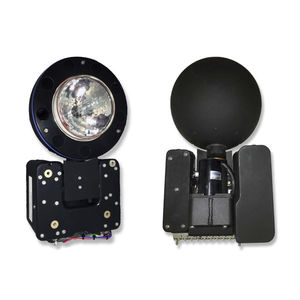

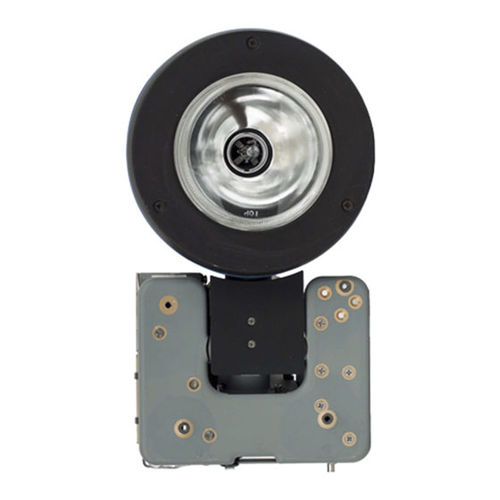

HID searchlight
for hangarsoutdoor

HID searchlight
HID searchlight
HID searchlight
Add to favorites
Compare this product


Lighting technology
for hangars
Other characteristics

50 W, 75 W


DIMENSIONS: 12.33” X 6.125” HID LAMP POWER: 55W MAX (50W NOMINAL) 78W MAX (75W NOMINAL) MOTORS AND CIRCUITRY: 100W MAX VOLTAGE: 28 VDC LIGHT OUTPUT: 690K CP (FOR THE 75W) 480K CP (FOR THE 50W) OTHER OUTPUTS AVAILABLE WEIGHT: 6.5 LBS. MAX BEAM WIDTH: MULTIPLE OPTIONS AVAILABLE Capable of being extended at a maximum airspeed of 135 knots. Once extended and in a stationary position, the light is capable of withstanding an air speed of 180 knots. Light head is able to rotate 360°. 50 w lamp has a 40 times longer lamp life than a standard 200w halogen lamp, 20 times longer for the 75w lamp. Designed to fit the existing MIL-L81174/2B.
