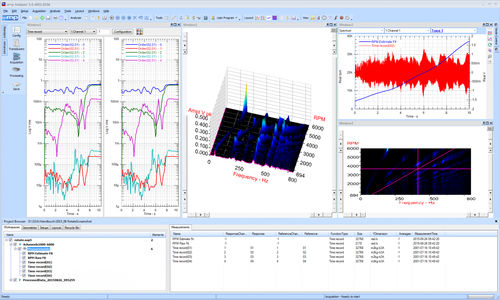

The Rotate software package is part of the m+p Analyzer Software for noise & vibration measurements and analysis. It provides a wide range of data acquisition and analysis tools for capturing and understanding noise and vibration induced in rotating and reciprocating machines by their motion. Fixed and variable speed machines are accommodated as are both structural vibration and condition monitoring diagnostics. Multiple tacho inputs can be processed for accurate speed tracking during analysis. Spectral mapping, order tracking, time history and orbit data analysis are all available. Rotating machinery diagnostics Analysis of noise and vibration problems related to rotational forces, e.g. in automotive and aircraft engines, transmissions, gearboxes, compressors, pumps, turbines, electric motors Machinery condition monitoring Order analysis Balancing and bearing analysis With the m+p Analyzer Rotate software, the acquisition of spectra for an online waterfall display can be triggered based on RPM or time values, and orders can also be acquired and displayed online. The simultaneous acquisition of vibration and tacho signals as time records (throughput recording) additionally allows offline postprocessing analysis with spectral maps and advanced computed order tracking. The software uses intelligent wizards that, step by step, guide through the process of performing a rotating machinery data acquisition and analysis. Waterfall and 2D graphs can be directly copied and pasted into ActiveX compliant applications such as Microsoft Word or PowerPoint. Machinery Condition Monitoring
