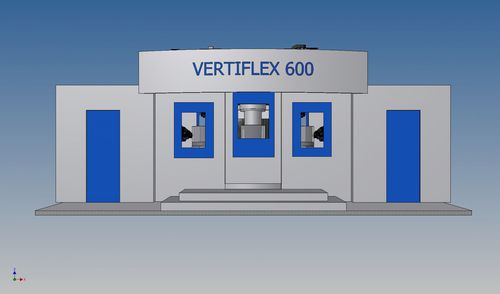

Rotary transfer machine Vertiflex 600
8-positionmachiningloading

rotary transfer machine
rotary transfer machine
rotary transfer machine
rotary transfer machine
rotary transfer machine
rotary transfer machine
rotary transfer machine
rotary transfer machine
Add to favorites
Compare this product


Characteristics

Type
rotary
Number of positions
8-position
Function
machining, loading, unloading
Other characteristics
CNC, 5-axis, vertical-axis, for aeronautics

Description

FLEXIBLE TRANSFER MACHINES The Vertiflex 600 is a flexible manufacturing cell, natural evolution of VFX 300 and VFX 450 versions, with the additional possibility of mounting, on some dedicated stations, a pallet holding rotating fixtures - not only on the conventional B axis – but also on a second axis (A axis), so obtaining a full 5-axis interpolated positioning. The full CNC pallet rotators, including that one of the loading/unloading station, are moved by a Torque motor to 360.000 positions and hydraulically locked. The machining modules, up to a maximum of 8, are real machining centers moving on x, y, z axes. FLEXIBLE TRANSFER MACHINES The full CNC pallet rotators, including that one of the loading/unloading station, are moved by a Torque motor to 360.000 positions and hydraulically locked. The machining modules, up to a maximum of 8, are real machining centers moving on x, y, z axes. Each machining center is equipped with 6- or 8-position tool change revolver head and allows to suit up to 64 tools in the full configuration. 5-axis machining can be provided in one station for the 4-station VFX 600 and in two stations for the 6-station VFX 600. FLEXIBLE TRANSFER MACHINES You can find all detailed technical figures in the "CATALOG AREA". You can also see samples of this product in the Photo's and Video's gallery, here below.
