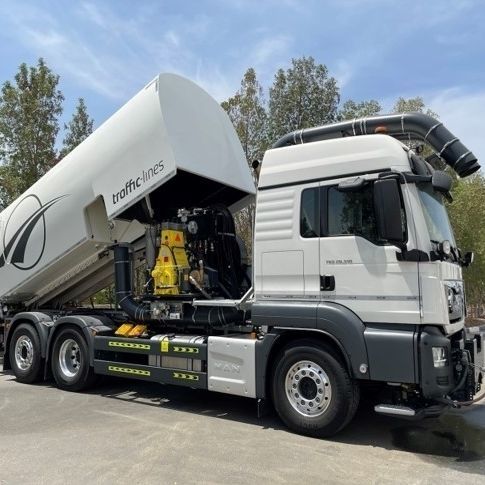

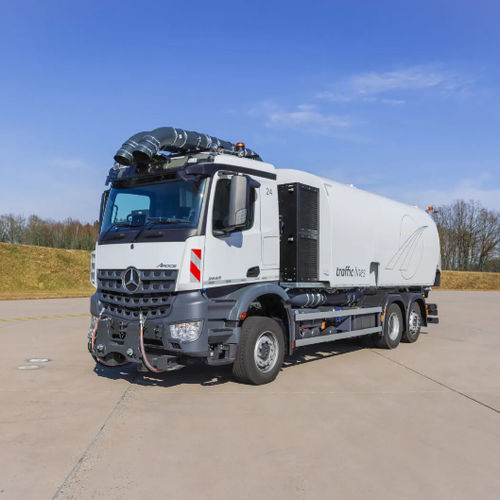

Ultra high-pressure washing truck compact 40

self-propelled

With the technology of the compact 40, you get a flexible, manoeuvrable and strong package for outstanding performance

Chassis
Volvo, MAN, Scania or Mercedes

Enginge power
up to 551 HP/ 405 kW Euro 6

Number of axles
3

Wheel base
4,800 mm

Permissible total weigh
26,000 kg

Measurements truck (L x W x H in mm)
Approx. 9,900 x 2,590 x 3,700 mm

Mounting side of the steering wheel
Right or left hand side

Colour chassis / colour body
MB 9147 arctic white (others possible)

Operating pressure
Up to 2,800 bar / up to 40,610 PSI

Number and type of hp pumps
1 HDP 204 (hydraulically driven)

Suction power
Up to 24,000 m³/h

Suction lines
2 x approx. 250 mm diameter

Included additional equipment
- High-pressure washing unit 50 l / 150 bar with 1 hand lance
- Prepared for trailer coupling
- Incl. rear view camera

Flow rate
10-40 l/min

Suction capacity
up tp 24,000 m3/h

Tank volume fresh water
up to 10,000 l

Tank volume waste water
up to 10,000 l

Number of high-pressure-pumps
1

Pump drive systems
Hydraulic drive for stepless control of the water flow rate

Sweeping functionality
optional 2,900 - 4,100 mm

Controller system
Touchpanel 19‘‘,
SPS, Industry 4.0

Truck diesel Tank capacity
300-500 l, additional tanks optional
