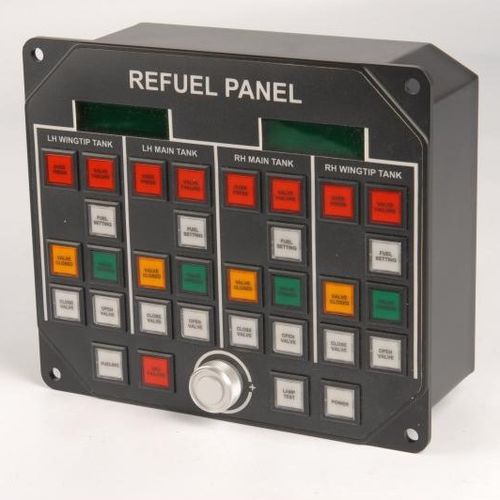

Level gauge
electronicwithout displayfuel

level gauge
level gauge
level gauge
level gauge
level gauge
level gauge
level gauge
level gauge
Add to favorites
Compare this product


Characteristics

Type
level
Display
electronic, without display
Applications
fuel, engine
Domain
for aircraft
Other characteristics
illuminated

Description

Complete solutions for various types of fuel tanks High accuracy of measurement, including aircraft banking solutions Meets RTCA/DO-160G and RTCA/DO-178C standards Possibility of connection to on-board bus bars (FMS, EFIS, etc.) An independent system is used for the right and the left sections of the wing. The systems for the measurement of fuel quantity on the aircraft are designed for independent indication of fuel level in individual fuel tanks and/or sectors. The measurement of fuel quantity is one of the most important systems on the aircraft, directly affecting flight safety. It clearly determines the fuel quantity in the tanks. Fuel weight can account for half of the take-off weight therefore the information regarding fuel quantity in individual tanks before take-off is essential. During flight, information about actual fuel quantity is important for the evaluation of flight progress and termination. Similarly, information about actual fuel consumption indicates engine condition and directly affects aircraft safety Fuel Measurement System The aircraft fuel gauge cluster is a functional system of electronic control banks, fuel capacity transmitters and minimum fuel quantity sensors. The assembly may be further supplemented by adding a central filling control unit and maximum fuel level sensors. The transmitters are located directly inside the fuel tanks and cooperate with the block of electronics. Change of fuel level is shown by a change of the floating fuel transmitter. This process is dependent on tank shape. Based on the knowledge of the polynomial defining the tank shape, the accurate fuel quantity in a given tank is calculated by the electronics bank.
