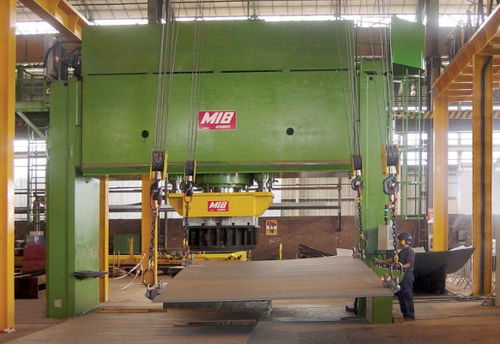

Hydraulic press
formingfor aeronautics

hydraulic press
hydraulic press
Add to favorites
Compare this product


Other characteristics
for aeronautics
Pressing force

20,000 kN


Thick steel plate forming needs high force presses with a wide accesible space between feet and both tables due to the size of the parts handle. These technicals points don\’t have to affect the safety rules concerning use of presses. - Characteristics Forming press kind of : 2 feet Arch Press 3 cylinders / 4 guiding columns Stroke : 1 000 mm Daylight between ram and bolster : 1 500 mm Daylight between feet : 6 000 mm Lower Table : 2 200 x 2 200 mm Upper Table : 1 500 x 1 500 mm Approach speed : 120 mm/s Working Speed : 10 mm/s Return speed : 170 mm/s Oil tank capacity : 4 000 L Total weight : 220 T Dimensions : 9 200 x 2 300 x 8 400 mm Assembling : Pre-stress bolts and cotters Display for parameter setting : color touch screen Control console :movable on rolls/press and cranes movements control by joysticks Total Power : 275 kW
