Mapping aircraft BAT HAWK R

surveillancefor geotechnical surveysinstructional

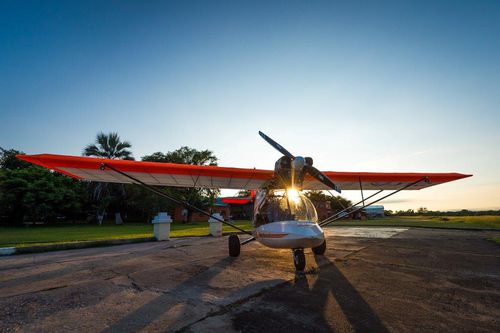

The Bat Hawk is a high wing monoplane with the crew of two seated side by side in an under slung tubular framed structure surrounded by a glass fibre composite fairing.Crew members are protected from the weather by a very large wrap around windshield. The propeller and the engine are mounted in a tractor position above and ahead of the crew. The empennage is conventional in location and layout. The undercarriage is a tricycle arrangement with a steerable nose-wheel. The wing, which is strut and lift wire braced, has two tubes forming the spars, one at the leading edge and one at the rear edge of the wing. All the above parts are manufactured from corrosion resistant aluminium alloy and stainless steel wires, whilst the air-frame and wings are covered with tensional Dacron sailcloth.
