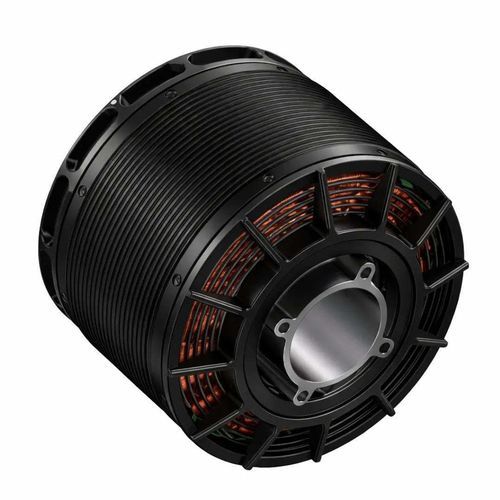

Aircraft electric motor MIG 80

30 kW...40 kWbrushless

MIG 40 brushless electric motor with higher power for applications that demand superior thrust and efficiency. General Description THEMIG 80It is an electric motor.high torque brushless, designed to operate inlow speeds with large diameter propellersdelivering high thrust, high efficiency and mechanical robustness. Developed for industrial applications andexperimental aeronauticswhere reliability and performance are critical. Electrical Specifications Nominal operating voltage: 168 V(up to 40S) Peak power: 35 kW Peak current (battery): 200 A Maximum efficiency:until90% Mechanical and Performance Specifications Nominal speed under load: 1,900 rpm Maximum torque (at maximum rpm): 170 Nm Engine type:Three-phase brushless Operation:Integrated Hall sensor (compatible with sensorless operation) Thrust Maximum thrust: 135 kgf Test condition:PropellerE-Props 3-87-160 (Values ​​depend on propeller, air density, controller, and environmental conditions.) ESC Compatible Recommended ESC: MIG DRIVE 1000 Refrigeration System:Refrigerationair Design optimized for heat dissipation during continuous operation.
