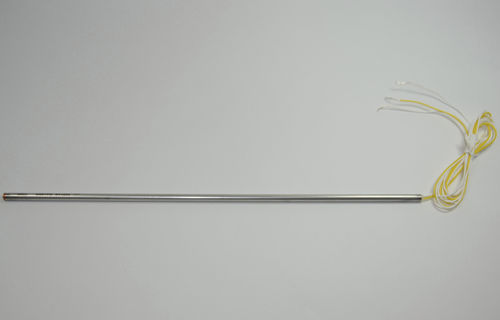

Aircraft temperature probe S51PA120Z120

aircraft temperature probe
aircraft temperature probe
Add to favorites
Compare this product


Characteristics

Applications
for aircraft
Diameter

0.21 in

Description

Minco tip-sensitive RTD probes feature a sensing tip constructed of copper alloy. The copper alloy tip is twenty times more conductive than stainless steel, providing increased sensitivity and rapid response to changes in temperature. The tip sensitive design also focuses the temperature sensitive portion of the sensor near the tip of the probe, providing improved accuracy in thermowells, bearings and other installations. For applications requiring: Highly accurate and repeatable measurements Resistance to shock and vibration Rapid response Temperature range of -50 to 260°C (-58 to 500°F) Attributes Element Type - Platinum, Single Resistance - 100 Ω ±0.5% at 0°C TCR - 0.00392 Ω/Ω/°C Length (in) - 12.000 Lead Length (in) - 120 # Leads - 3 Base Model - S51 Element Code - PA Temperature Range - -50 to 260°C (-58 to 500°F) Type - Single element RTDs: No armor over leads Pressure Rating - 100 psi (6.9 bar) Vibration - Withstands 10 to 2000 Hz at 20 G's min. per MIL-STD-202, Method 204, Test Condition D Shock - Withstands 100G's min. sine wave shock of 8 milliseconds duration Probe Type - Straight

Catalogs

No catalogs are available for this product.

See all of Minco‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
