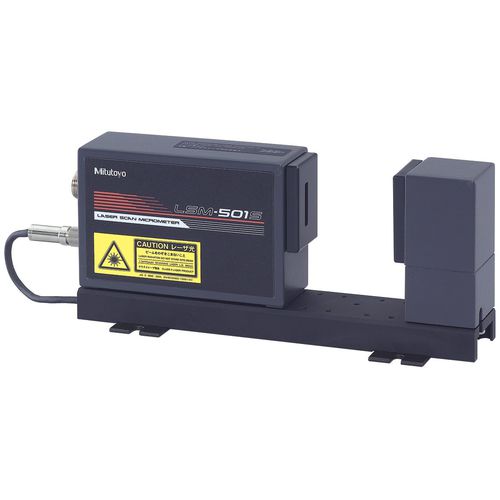

Non-contact laser scanner LSM-501S
for aeronautics

non-contact laser scanner
non-contact laser scanner
Add to favorites
Compare this product


Characteristics

Type
non-contact
Other characteristics
for aeronautics
Distance range

Max.: 10 mm
(0.4 in)

Min.: 0.1 mm
(0 in)

Accuracy

1 µm

Description

High Accuracy Non-contact measuring system Provides ultra-high accuracy with a linearity of ±0,5 μm over the entire measuring range (0,05 mm to 10 mm) and ±(0,3+0,1ΔD) μm in the narrow range. Ultra-High repeatability of ±0,04 μm. High scanning rate of 3200 scans/s Resolution (selectable): 0,00001 - 0,01 mm Linearity at 20°C *¹: Entire range : ± 0,5 μm Narrow range : ±(0,3+0,1ΔD) μm Positional error *²: ±0,5 μm Measuring region: 2 x 10 mm (ø0,05-0,1 mm) 4 x 10 mm (ø0,1-10 mm) Laser wavelength: 650 nm, Visible Scanning rate: 3200 scans/s Scanning speed: 113 m/s Applicable laser standards: IEC, FDA Repeatability (±2ơ): ±0,04 μm Inch-Metric: Metric
