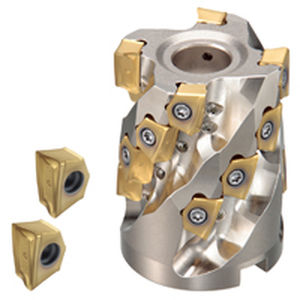

Corner radius milling cutter VFX 5 series
for titanium alloysfaceinsert

corner radius milling cutter
corner radius milling cutter
corner radius milling cutter
corner radius milling cutter
corner radius milling cutter
Add to favorites
Compare this product


Characteristics

Geometry
corner radius
Dispensed product
for titanium alloys
Type
insert, face
Other characteristics
for aeronautics
Length

Min.: 50 mm (1.97 in)

Max.: 100 mm (3.94 in)

Diameter

Min.: 40 mm (1.575 in)

Max.: 80 mm (3.15 in)

Description

Cutter for high efficiency machining of titanium Productivity increase by high metal removal rates 3 chip breakers for lowest cutting resistance Corner radius from 1.2 mm ~ 5.0 mm available Arranging the inserts vertically absorbs the principal cutting force through the thickness of the insert and achieves extremely high rigidity. The insert seat has a curved seating face in the radial direction of the tool and a V-shaped seating face on the axis of rotation that can securely handle cutting forces from any direction. The curved cutting edge resembles the geometry of a solid end mill and achieves low cutting resistance that enables high quality machining. The internal coolant is directed slightly above the rake face of the cutting edge so that it is aimed directly at the chip. Forcibly ejecting the chips prevents them from welding to the cutting edge, enabling higher efficiency machining. A replaceable nozzle is used for the internal coolant (hole diameter of the standard nozzle supplied: Ø 0.8). The coolant pressure can be adjusted by using a nozzle with a smaller or larger diameter. Nozzles with different diameters are available as options.
