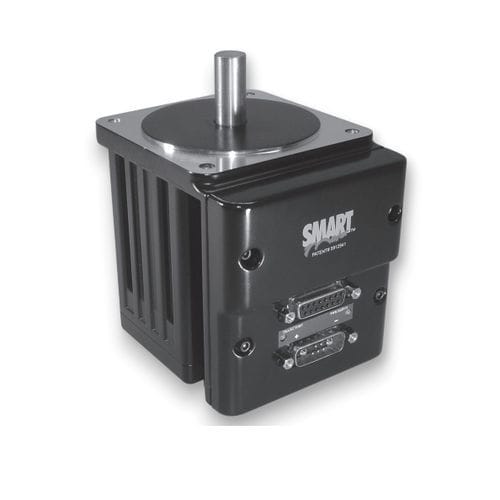

Electric actuator SM34165DT
rotaryfor aircraftwith servo-motor

electric actuator
electric actuator
electric actuator
electric actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
rotary
Applications
for aircraft
Technology
with servo-motor
Torque

1.45 Nm, 3.39 Nm
(1.069 ft.lb, 2.5 ft.lb)

Description

NEMA 34 size SmartMotor™ with a higher torque integrated motor, controller, amplifier, encoder and communications bus. Nominal Continous Power - 615 - Watts No Load Speed - 5,100 - RPM Max. Continous Current* @ 4500 RPM - 16.93 - Amps Peak Power @ 3400 RPM - 930 - Watts Voltage Constant - 8.9 - V/kRPM Inductance - 0.32 - mH Encoder Resolution - 8,000 - Counts/Rev Rotor Inertia - 0.0142 - oz-in-sec^2 10.031 - 10^-5 Kg-m^2 Weight - 5.5 - lb 2.49 - kg Shaft Diameter - 0.500 - in 12.70 - mm Shaft, Radial Load - 30 - lb 13.61 - kg Shaft, Axial Thrust Load - 3 - lb 1.36 - kg
