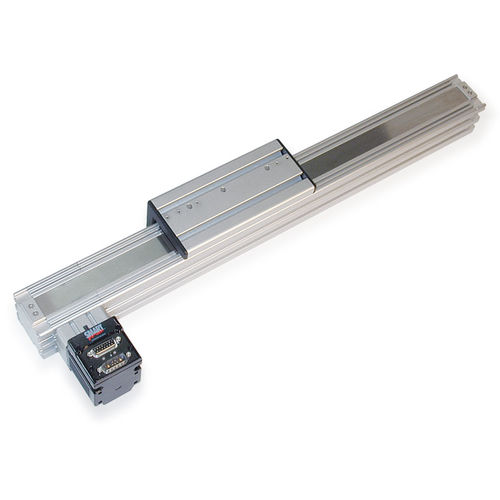

Electric actuator HLD60

linearfor aircraftwith servo-motor

Linear Belt Actuators Motor 23 Frame SmartMotors, D and M series - Coupling Flexible Jaw - Displacement/rev 2.5, 5, 10, 12.5 mm/rev Position sensors Optional Home & EOT limits - Overall length (L) Stroke + 332 mm Overtravel 25 mm Unit mass 2.7 + 0.0044 x (stroke, mm) + (motor mass, kg) kg Performance Unidirectional repeatability <20 μm Bidirectional repeatability 60 – 180 (belt tension dependent) μm Linear Accuracy* 0.5/300 mm/mm Displacement/rev 2.5 5 10 12.5 mm/rev Max linear speed (no load)* 200 391 782 977 mm/s Payload Mass** 45 42 18 13 kg
