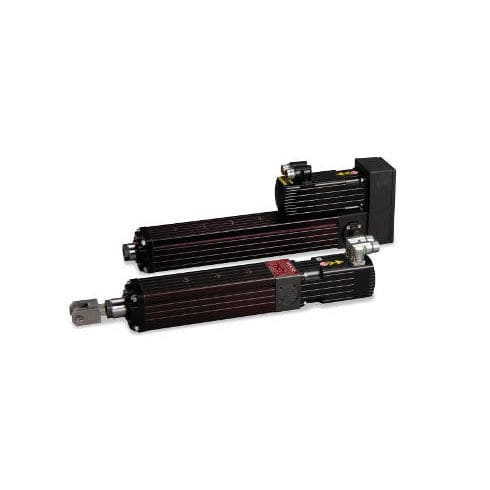

Electric actuator
linearfor aircraft

electric actuator
electric actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
linear
Applications
for aircraft

Description

Higher efficiency for same payload Long-lasting performance and reliability Higher forces, rod speeds and loner strokes Inline and foldback design with internal anti-rotate Variety of motor-windings for optimum performance Several screw leads for speed/force variations Specifications Frame Sizes 3, 4, 5, 6 Design Style Inline, foldback Lead lengths 5, 10, 20 mm (.197, .394, .787 in) Continuous Stall Force 1.02 to 95.99 kN (229 to 21,581 lbf) Peak Stall Force 3.56 to 115.59 kN (801 to 25,987 lbf) Brake Holding Force - optional 1.25 to 140.50 kN (280 to 31,588 lbf) Maximum Speed 138 to 1,600 mm/sec (5.5 to 63.0 in/sec)
