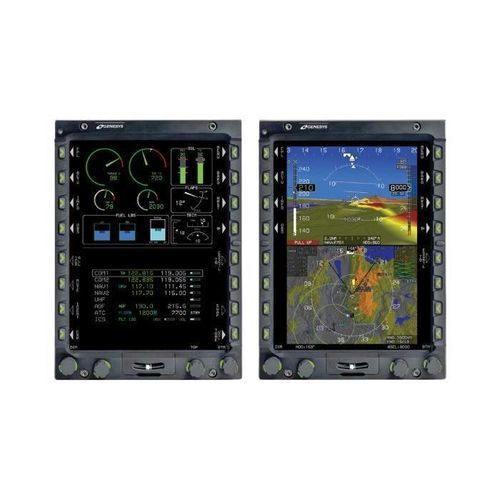

MFD EFIS IDU-680

PFDprimary flight displayEFIS

Overview
IDU-680 EFIS smart display suites feature configurable PFD and MFD formats to present flight instruments, moving map, HSI, flight planner, traffic, terrain, weather radar, datalink, video, radio/audio management and engine displays. The IDU-680 includes a built-in Flight Management System and integrated Class-A TAWS (Terrain Awareness and Warning System) to support situational awareness and pilot workload management. The Genesys avionics suite offers an open architecture for integration with special-mission equipment.

Features
The Genesys 3D Synthetic Vision provides situational awareness and supports precision operations. The Level A certified IDU-680 EFIS uses ADAHRS and GPS SBAS data for RNP and LPV approaches and employs patented OASIS® (Open Architecture System Integration Symbology) to present engine data and CAS messages. The system interfaces with selected radios and weather radar and provides expansion ports for future capability growth.

The platform reduces maintenance part counts and supports higher operational availability. Built-in interfaces for FLIR, Satcom, DF, HF/UHF, TACAN, Datalink, SELCAL and tactical radios allow staged upgrades and integration of mission systems.

Units are MIL-STD qualified and NVG-compatible to meet demanding operational and certification environments, and are offered for OEM new-build and modernization programs.

The IDU-680 Includes

• 3D Synthetic Vision
• Highway-In-The-Sky (HITS) navigation
• Geo-referenced hover vector
• Terrain alerting and warning system (TAWS & HTAWS)
• Graphical Flight Management System (FMS)
• Digital Flight Recorder (DFR)
• Night vision (NVG) compatibility
• MIL-STD qualification
• Integrated radio and audio management
• And more

Designed For Harsh Environments
Hardware and software are qualified for operation in harsh environments to ensure product reliability and mission readiness. Environmental and qualification testing includes extreme temperatures, vibration, lightning strike, HIRF, altitude, sand and dust, humidity, waterproofing, fluids susceptibility, salt and fog and related conditions.

Technical specifications

• Model family: IDU-680 EFIS
• Certification: Level A certified
• Sensors / data: ADAHRS and GPS SBAS support for precision operations including RNP and LPV approaches
• Display capabilities: Configurable PFD and MFD formats (flight instruments, moving map, HSI, flight planner, traffic, terrain, weather radar, video, engine displays)
• Built-in systems: Graphical Flight Management System (FMS), Class-A TAWS, Digital Flight Recorder
• Synthetic vision: Genesys 3D Synthetic Vision
• Avionics interface: OASIS® open architecture symbology for engine/CAS messages; expansion ports for future growth
• Integrated interfaces: Support for FLIR, Satcom, DF, HF/UHF, TACAN, Datalink, SELCAL, tactical radios
• Compatibility: Night Vision/Goggle (NVG) compatible
• Qualification: MIL-STD qualified
• Environmental: Qualified for extremes of temperature, vibration, lightning, HIRF, altitude, sand/dust, humidity, waterproofing, fluids, salt/fog
