100 - 150 dB microphone 2002

for aviation headsetfor the aerospace industry

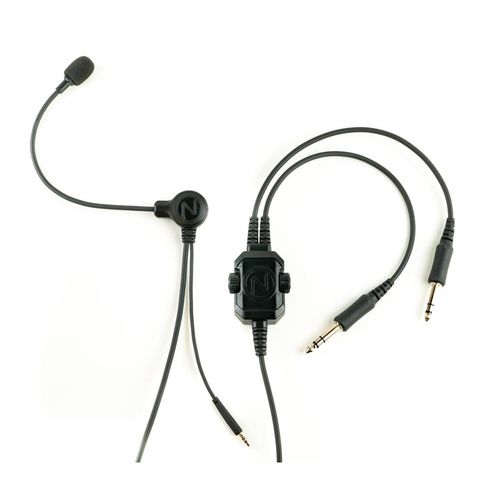

NFlight Nomad Pro Aviation Microphone How it works: The NFlight Nomad is an aviation microphone that can be attached to any headset using the included 3M Dual Lock. The NFlight Nomad has a 2.5mm audio output that can be plugged into the headset's auxiliary audio input. The NFlight Nomad Pro accepts 3.5mm audio inputs, allowing you to listen to music while you fly. It also has a mono/stereo selector switch, making it compatible with both mono and stereo aircraft intercoms. The NFlight Nomad plugs into standard PJ or twin-plug jacks on any fixed-wing aircraft. It is also available with Airbus connectors. TECHNICAL SPECIFICATIONS General: Connections: Standard twin-plug PJ-style 3/16-inch and 1/4-inch aviation connectors Supports both mono and stereo aircraft intercoms Audio output: 2.5mm, 3-pole male connector Auxiliary Audio Input: 3.5mm Cable length: 2 meters or 78 inches Audio output cable length: 10 centimeters or 4 inches Flexible boom microphone length: 20 centimeters or 8 inches Output volume: adjustable Attachment to headset: 3M Dual Lock circles (3M adhesive is removable without a trace.) Included accessories: shirt clip for strain relief, 3.5mm auxiliary audio cable, two extra 3M Dual Lock pads Microphone: Noise-canceling electret Frequency response: 200 Hz - 6000 Hz Maximum SPL: 114 dB Terminating impedance: 220-2200 ohms Operating voltage: 8V-16V DC
