Wire mesh filter 4300/4400 Series

wire mesh filter
wire mesh filter
wire mesh filter
Add to favorites
Compare this product


Characteristics

Filtration element
wire mesh
Pressure

Min.: 3,000 psi

Max.: 6,000 psi

Description

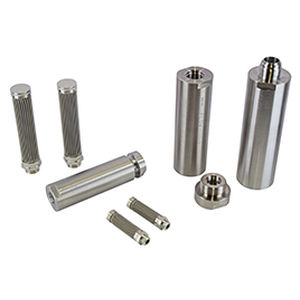

The Norman 4300 & 4400 Series Straight In-Line Filters are available in aluminum and stainless steel housings designed for high pressures. Aluminum 2024T-351 housing is good for general industrial service while stainless steel offers the best choice when fluid compatibility or when severe service is a consideration. 4300/4400 Series Filter Element Material The heart of the filter is the element which is made of one of the following: Recleanable, pleated microweave 304 stainless steel Available in seven filtration ratings from 10 to 200 micron absolute 316L porous sintered stainless steel Available in four filtration ratings from .2 to 10 micron absolute Disposable glass fiber Rated at 3, 5 or 10 micron absolute Element collapse ratings of 3000, 3250 and 4500 psid are available. Woven Stainless Steel Wire Mesh Elements Our precision woven stainless steel wire mesh elements are the ultimate in filtering media for industrial use. They provide size discrimination and freedom from media migration. Stainless steel elements are most suited to extreme temperature ranges and corrosive conditions. With proper cleaning, these elements can be reused for very long time periods. Glass fiber provides high dirt-holding capacity, high-efficiency (Beta5 = 200), low-cost and throw away convenience.
