X-ray inspection machine WideXcan

radiographicautomaticfor the aeronautical industry

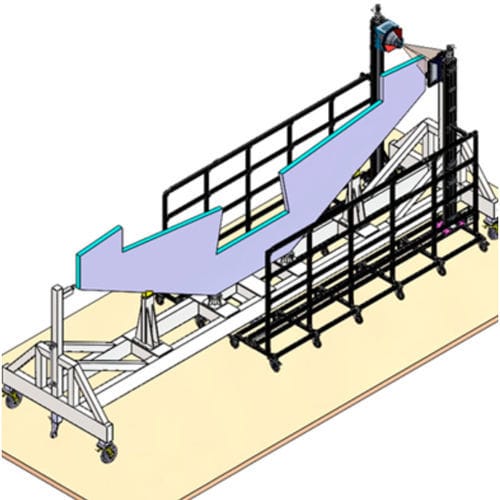

X-Y cartesian movement system for X-ray imaging of large samples or structures. WideXcan is a mobile system consisting of two frames that carry the RX tube and the detector. Its application is mainly oriented to the aeronautics sector, as it allows the radiography of large parts through the synchronised movement of the tube and the detector. Main characteristics Design of all types of trajectories on the part Automatic and manual spatial positioning Pixel size: 100 μm Pixel Matrix: 4200 x 3400 Greyscale: 16 bits Scanning size: up to 4000 x 3000 mm (larger on request) Maximum power: 180 kV Maximum power: 90W (0.5 mA) Focal spot: 20 μm min
