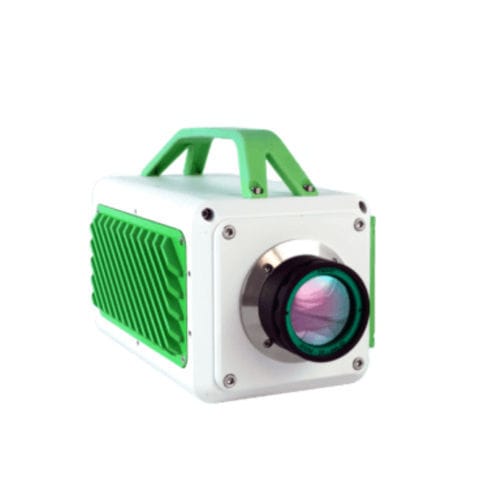

NOXCAM-HSI
HIGH PERFORMANCE RADIOMETRIC INFRARED CAMERAS FOR HARSH ENVIRONMENTS
ACCURATE RADIOMETRIC CALIBRATION
EMBEDDED RECORDING
OPTICAL INTERFACE FLEXIBILITY
STANDARD INTERFACES AND SOFTWARE COMPATIBILITY FOR SEAMLESS USE
NoxCam HSi series complement the portfolio of radiometrically calibrated infrared cameras with a stiff and robust housing specifically designed for harsh environments.
Based upon our latest version of NoxEngine technology, NoxCam HSi is the perfect tool for applications requiring high speed imaging and interfaces while maintaining the camera ease of use recognized by our users.
NoxCam HSi is used for industrial non-destructive testing, signature application or airborn thermography. Radiometrically calibrated, NoxCam provides measurement data of impressive accuracy.
NOXCAM 640M-HSI
Director Type Cooled MCT or InSb, snapshot FPA
Spectral Range Band 2 - 3.7μm to 4.8μm
Broadband - 1.5μm to 5.1μm
Integrated Optical Filter Wheel
Image Size 640x512 - 15μm pitch
Frame Rate Up to 355Hz
Kilohertz in sub-window mode
Optical Aperture f/2 to f/5.5
Lenses Range From 12mm to 200mm
Microscopic lens
NOXCAM 640L-HSI
Director Type Cooled MCT or T2SL, snapshot FPA
Spectral Range Band 3 - 7.7μm to 9.3μm
up to 9.5μm with T2SL
Integrated Optical Filter Wheel
Image Size 640x512 - 15μm pitch
Frame Rate Up to 230Hz
Kilohertz in sub-window mode
Optical Aperture f/2 to f/4
Lenses Range From 12mm to 200mm
Microscopic lens
