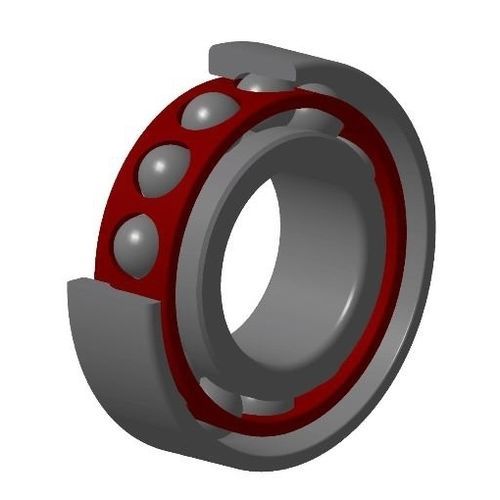

Ball bearing 10R71915CVUJ74
angular-contactwith plastic cagehigh-precision

ball bearing
ball bearing
ball bearing
ball bearing
Add to favorites
Compare this product


Characteristics

Rolling element
ball
Configuration
angular-contact
Other characteristics
with plastic cage, high-precision
Applications
for airliners

Description

In the ball bearing and high precision bearing ranges, the high precision angular contact ball bearing solves the maximum reliability constraints with increased performance in terms of rigidity, speed, capacity and precision. This bearing is recommended for demanding applications in terms of precision such as machine tool spindles. NTN-SNR is getting under ranges dedicated to requirements of speed, sealing, specific greasing, etc. PRODUCT DEFINITION Brand - SNR d - Internal diameter - 75 mm D - External diameter - 105 mm B - Bearing/Inner ring width - 16 mm d1 - External diameter inner ring - 84,7 mm D1 - Inner diameter outer ring - 95,3 mm D2 - Inner diameter outer ring - 100,14 mm a - Charge load application point - 20 mm α - Contact angle - 15 ° rs - Min fillet radius - 0,6 mm r1s - Min fillet radius - 0,3 mm Precision class - P4 Mass - 0,35 kg
