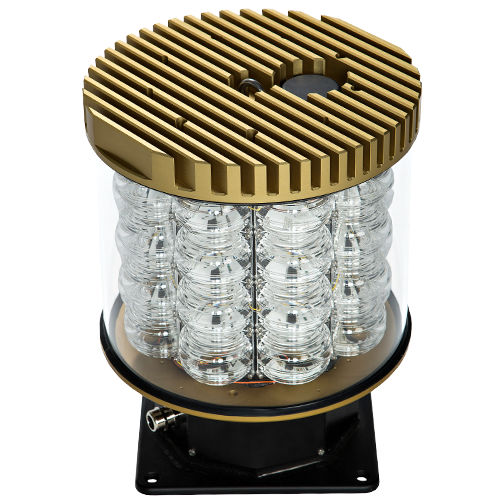

Obstruction beacon Aerodrome 50 000cd

for airportLEDinfrared

Based on LED technology Doesn’t require any additional controllers Infrared (850nm) incorporated for NVG compatibility Power consumption less than 250W Aluminium body and glass cover 5 year warranty- the longest in the industry An aerodrome beacon is intended for use at night if one or more of the following conditions exist: a) aircraft navigate predominantly by visual means; b) reduced visibility are frequent; or c) it is difficult to locate the aerodrome from the air due to surrounding lights or terrain. The aerodrome beacon is located on or adjacent to the aerodrome in an area of low ambient background lighting. OPTICAL CHARACTERISTICS Flash Sequence 12-30FPM Color White Pulse length less than 500ms Horizontal beam 360° Vertical beam 1° - 2°: 25,000cd Vertical beam 2° - 8°: 50,000cd Vertical beam 8° - 10°: 25,000cd Vertical beam 10° - 15°: 5,000cd Vertical beam 15° - 20°: 1,000cd DESIGN TO MEET ICAO Annex 14, 2013, 6th Edition, 5.3.3 Aeronautical Beacon, 5.3.3.3 Aerodrome Beacon
