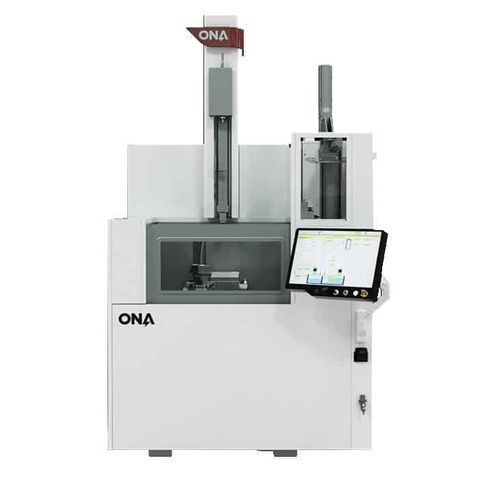

Die sinking EDM HALLEY 6

compact

Product overview
FASTHOLE ONA HALLEY 6 is an EDM hole-drilling machine developed from ONA's EDM expertise and aerospace experience. It is designed specifically for the production of turbine blades and vanes, offering a compact footprint and machine layout suited to precision hole drilling on airfoil components.

Key features

• Compact footprint with slide-down door tank for easy access.
• Multi-axis configuration for complex-shaped holes: X 1000 mm / Y 600 mm / Z 600 mm / W 700 mm; C axis up to 1000 rpm.
• Optimized EDM cycles for high throughput in turbine blade and vane manufacturing.
• Capability to produce precise, complex-shaped holes and profiles.
• Effective working area: 1000 x 600 mm; tank size W 1345 x D 935 x H 780 mm.

Applications

• Aeronautics: turbine blade and vane production.
• Repair and refurbishment of airfoil components.
• Any precision application requiring shaped or complex holes.

Technical specifications

• X axis stroke — 1000 mm
• Y axis stroke — 600 mm
• Z axis stroke — 600 mm
• C axis maximum rotation speed — 1000 rpm
• W axis stroke — 700 mm
• Tank type — Slide-Down Door
• Tank size — W 1345 x D 935 x H 780 mm
• Effective working area — 1000 x 600 mm
• Optimized for turbine blade and vane manufacturing and complex-shaped holes
