Force test instrument PCE-DFG 5 X

compressiontractiondigital

Description

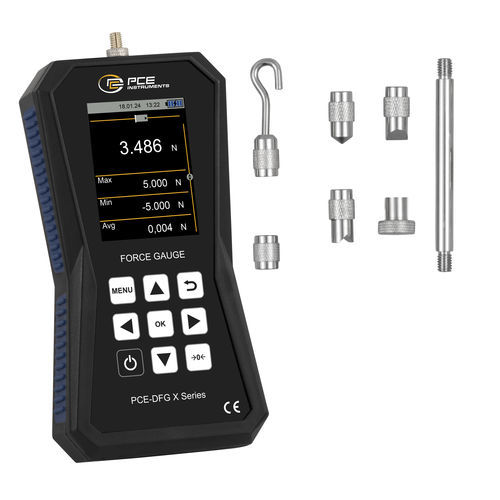

The PCE-DFG 5 X is a compact force gauge with an internal measuring cell for accurate tensile and compressive force measurement up to 5 N. It records and visualises measured values numerically and graphically on a 2.8-inch illuminated LCD and offers multiple alarm modes and a bar chart view for quick range assessment. The measuring cell accepts M6-threaded hooks and adapters and can be adapted to force test benches for automated testing. Data are stored to the internal 32 GB memory (approx. 30 million points) and can be exported via the USB-C interface using the supplied PC software.

Highlights

• Measuring range: 0 ... 5 N
• Measuring rate: 1 ... 7,200 Hz
• Accuracy: ±0.05 % F.S.
• Graphic 2.8-inch LCD (numeric, graphic, bar chart)
• USB-C interface and PC software
• 32 GB internal memory (≈30 million points)
• Interchangeable measuring cells / M6 adapters
• Various alarm modes (optical, acoustic)
• Calibration reminder

Specification
Measuring range: 0 ... 5 N
Resolution: 0.001 N
Accuracy: ±0.05 % F.S.
Units: N, kg, t, kN, Pa, kPa, Nm, Ncm, lb, ft, g
Display type: Illuminated graphic LCD
Display size: 2.8 inch
Adjustable measurement rate: 1 ... 7200 Hz
Memory medium: Internal memory
Storage capacity: 32 GB (≈30 million measuring points)
Memory interval: 1 Hz ... 7200 Hz
Operating time: up to 13 h
Automatic switch-off: adjustable 1 ... 15 min (deactivatable)
Alarm: optical, acoustic — Modes: Inside, Outside, Crack, Switch off
Menu languages: German, English, French, Spanish, Italian, Danish, Portuguese, Turkish, Polish, Russian, Chinese, Japanese, Dutch
Protection class (device): IP52 — Measuring cell: IP67
Power supply: USB 5 V DC, 500 mA
Weight: 255 g
Dimensions (L x W x H): 165 x 85 x 32 mm
Operating conditions: -20 ... 65 °C, 10 ... 95 % r.H.
Storage conditions: -20 ... 65 °C, 10 ... 95 % r.H.

Delivery Scope

• 1 x PCE-DFG 5 X force gauge
• 1 x adapter set (M6)
• 1 x case
• 1 x USB-C cable
• 1 x PC software
• 1 x operating instructions

Technical characteristics

• Model: PCE-DFG 5 X
• Measuring range: 0 ... 5 N
• Resolution: 0.001 N
• Accuracy: ±0.05 % F.S.
• Memory: 32 GB internal (≈30 million measuring points)
• Interface: USB-C
• Display: 2.8-inch illuminated graphic LCD (numeric, graphic, bar chart)
• Adjustable measurement rate: 1 ... 7200 Hz
• Operating time: up to 13 h
• Protection class: device IP52 / measuring cell IP67
• Dimensions: 165 x 85 x 32 mm — Weight: 255 g
