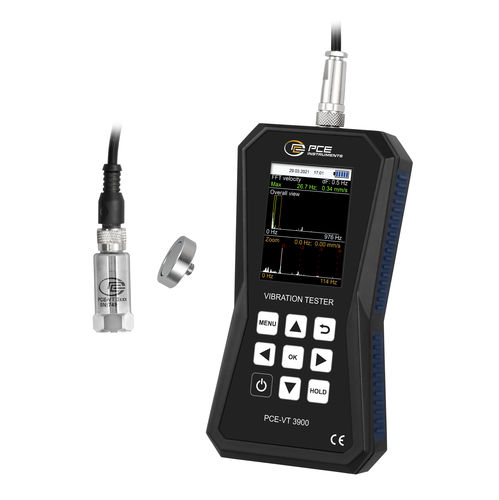

Single-point vibration meter PCE-VT 3900

digitalfor the aerospace industry

Vibration analyzer with internal memory / Route measurement / Rechargeable battery / Software for evaluating the stored data / Measuring range up to 399.9 m/s² / PC interface / Optionally with ISO calibration certificate The vibration analyzer is an ideal measuring device for fast and precise checking of vibrating parts, machines and systems. This vibration meter uses the external vibration sensor to determine the vibration displacement (measuring range 0.000 ... 3.9 mm), the vibration velocity (measuring range 0.00 ... 399.9 mm/s) and the vibration acceleration (measuring range 0.0 ... 399.9 m/s²). Various measurement parameters are available for the vibration meter, such as RMS, peak, peak-peak and crest factor. The vibration meter is equipped with a mode that allows a measurement to be automatically evaluated according to the limit values ​​of ISO 10816-3. In addition to the normal measuring mode, the vibration analyzer has an FFT mode. In the FFT mode, the frequency spectrum for the measured vibration speed or vibration acceleration is calculated and displayed. The calculated FFT lines are displayed in a graphic representation in an overall view for the entire frequency band and parallel to this in a zoom view to display the individual lines. - For mobile vibration measurement - Measuring range up to 399.9 m/s² / 15744 in/s² - FFT analysis - Route measurement - Manual measured value memory - Automatic ISO 10816-3 evaluation - Internal memory - 2.48" LC display - Rechargeable battery - Micro-USB interface
