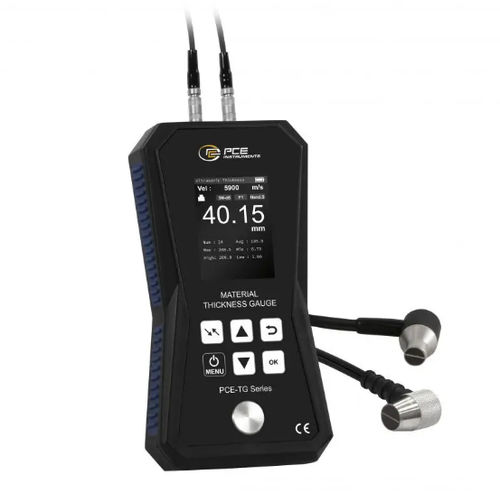

Glass thickness gauge PCE-TG 150A

for pipeswallmulti-material

Description
The thickness meter measures material thicknesses up to 300 mm. The device allows storage of the corresponding sonic velocity for a wide variety of homogeneous materials; sonic velocities for steel, aluminium, zinc, silver and gold are preinstalled in the device library. Individual maximum and minimum limit values can be stored; the device signals visually (and optionally acoustically) when a measured value is outside the limits. The instrument includes a data memory to record measured values; stored data can be analysed directly on the instrument and displayed graphically. Each individual measuring point can be accessed within the graphic. The instrument displays average, largest and smallest measured values. An ISO calibration certificate is optionally available.

Highlights

• Measured value memory for 1500 values
• Calibration reference mounted on housing
• Automatic switch-off (configurable)
• Material thickness measurement up to 300 mm
• Battery status display
• Optional with ISO calibration certificate

Specification
Material thickness (range 1): Measuring range: 1 mm ... 99.99 mm
Resolution: 0.01 mm
Accuracy: ±0.5 % v. Mw. + 0.05 mm

Material thickness (range 2): Measuring range: 100 mm ... 300 mm
Resolution: 0.1 mm
Accuracy: ±0.5 % v. Mw. + 0.05 mm

Sensor (PCE-TG 5M10d): Designation: PCE-TG 5M10d
Frequency: 5 MHz
Temperature range: -10 ... 60 °C
Measurable materials: Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials
Minimum diameter of pipes: 30 mm
Additional description: Standard probe for flat materials
Dimensions: Ø 10 mm x 23.4 mm
Weight: 39.5 g

Sensor (PCE-TG 5M6d): Designation: PCE-TG 5M6d
Measuring range: 1 mm ... 50 mm
Frequency: 5 MHz
Temperature range: -10 ... 60 °C
Measurable materials: Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials
Minimum diameter of pipes: 20 mm
Additional description: Standard probe for flat materials
Dimensions: Ø 6 mm x 25.3 mm
Weight: 35 g

General technical data:
Units: mm
Display type: TFT colour display
Display size: 2.4 inch
Storage medium: Internal memory
Memory capacity: 1500 values
Automatic switch-off: 2 ... 30 min (deactivatable)
Sonic speed adjustable: 1000 ... 9999 m/s
Menu language: English (US), Chinese
Protection class (device): IP52
Weight (device): 230 g
Dimensions (L x W x H): 168 x 87 x 35 mm
Operating conditions: 0 ... 40 °C, 0 ... 90 % r.H.
Storage conditions: 0 ... 40 °C, 0 ... 90 % r.H.
Accumulator/battery: 3x 1.5 V AA battery, alkaline-manganese
Capacity: 3000 mAh

Delivery Scope

• 1 x thickness meter PCE-TG 150A
• 1 x coupling gel (TT-GEL)
• 3 x 1.5 V AA batteries
• 1 x sensor PCE-TG 5M10d
• 1 x sensor PCE-TG 5M6d
• 1 x carrying bag
• 1 x quickstart guide

Caractéristiques / spécifications techniques

• Model: PCE-TG 150A
• Measuring ranges: 1 mm ... 99.99 mm (0.01 mm resolution), 100 mm ... 300 mm (0.1 mm resolution)
• Accuracy: ±0.5 % v. Mw. + 0.05 mm
• Sensors included: PCE-TG 5M10d and PCE-TG 5M6d (5 MHz)
• Memory: internal, 1500 values with graphical display and per-point access
• Sonic velocity adjustable: 1000 ... 9999 m/s; device includes library for common metals
• Limit value alarm: visual and optional acoustic signalling
• Display: 2.4" TFT color
• Power: 3 x 1.5 V AA (alkaline), capacity 3000 mAh
• Protection class: IP52
• Device weight & dimensions: 230 g; 168 x 87 x 35 mm
• Operating/storage conditions: 0 ... 40 °C, 0 ... 90 % r.H.
• Automatic switch-off: configurable between 2 and 30 minutes (can be deactivated)
• Minimum pipe diameters: 20 mm (PCE-TG 5M6d) / 30 mm (PCE-TG 5M10d)
• Calibration reference mounted on housing; ISO calibration certificate optionally available
