Monitoring camera PCE-AIC 50

for airporthigh-resolution

Description

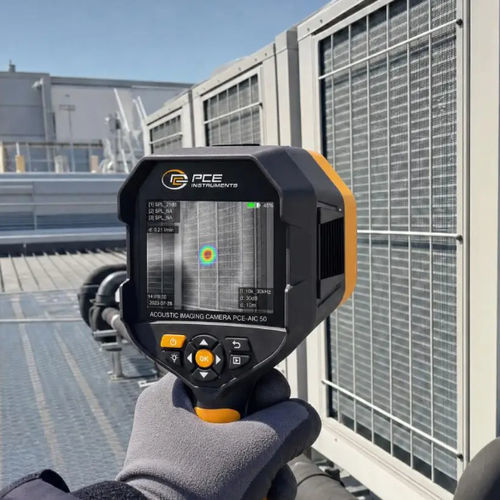

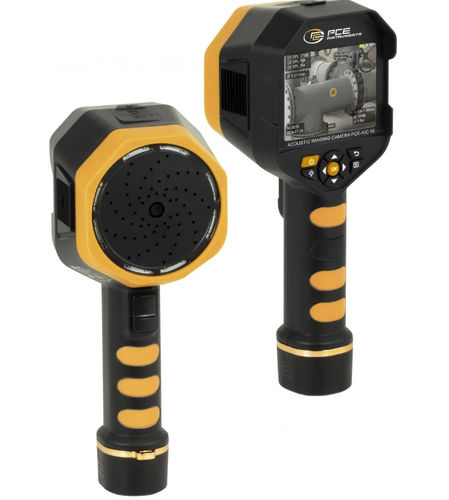

The acoustic camera PCE-AIC 50 is a measurement system for rapid localization of sound sources and detection of compressed air, gas and vacuum leaks. Using MEMS microphone technology, high-resolution imaging and analysis software, the device provides precise acoustic visualization for industrial inspection and condition monitoring. The instrument captures audible and ultrasonic signals for targeted diagnostics across a broad frequency range and distances.

Features

• 64-channel MEMS digital microphone array for accurate source localization
• Frequency range 2 kHz – 100 kHz (audible and ultrasonic)
• Detection range: 0.3 m to 50 m
• Imaging frame rate ≥ 25 FPS
• Integrated gas leak and leak-loss estimation
• 12 MP optical camera, 72° FOV, fixed 3.9 mm focal length
• Storage: internal 8 GB, TF/Micro-SD slot up to 512 GB
• Wireless image transmission (WLAN IEEE 802.11a/b/g/n/ac)
• 1/4" tripod mount

Specifications

• Number of channels: 64
• Frequency: 2 – 100 kHz
• Display type: LCD
• Display size: 3.5"
• Display resolution: 640 x 480
• Storage medium: Micro-SD card (TF)
• Internal storage: 8 GB (expandable to 512 GB via TF/Micro-SD)
• Interfaces: USB-C, WLAN
• Wireless standards: 802.11a/b/g/n/ac
• Sensor sensitivity: -26 ±1 dBFS
• Optical camera resolution: 640 x 480
• Tripod thread: 1/4"
• Field of view (FOV): 72° ±3°
• Color palettes: Rainbow, Iron Red, White Hot
• Sensors: MEMS microphone
• Pixel size: 12 µm
• Frame rate: 25 fps
• Focal length: fixed 3.9 mm
• Detection range: 0.3 – 50 m
• Menu languages: German, English (GB), English (US), Spanish, Chinese, Russian, French, Italian, Thai, Polish, Czech, Turkish, Korean, Finnish, Japanese, Swedish, Bahasa
• Ingress protection: IP52
• Power supply: 5 V DC (USB-C)
• Battery: 2 × 3.7 V removable Li-ion packs
• Battery capacity: 5000 mAh (18.25 Wh)
• Operating conditions: -20 … 55 °C, 10 … 95 % RH
• Storage conditions: -30 … 65 °C, 10 … 95 % RH
• Dimensions (L × W × H): 245 × 95 × 80 mm
• Weight: 425 g

Included

• 1 × Acoustic camera PCE-AIC 50
• 2 × removable lithium batteries
• 1 × USB Type-C charging cable
• 1 × storage case
• 1 × user manual

Technical characteristics

• Channels: 64
• Frequency range: 2 kHz – 100 kHz
• Detection range: 0.3 – 50 m
• Camera: 12 MP, FOV 72°, fixed 3.9 mm
• Display: 3.5" LCD, 640 x 480, 25 fps
• Storage: 8 GB internal, expandable via Micro-SD to 512 GB
• Interfaces: USB-C, WLAN (802.11a/b/g/n/ac)
• Battery: 2 × 3.7 V, 5000 mAh (18.25 Wh)
• Ingress protection: IP52
• Dimensions / Weight: 245 × 95 × 80 mm / 425 g
