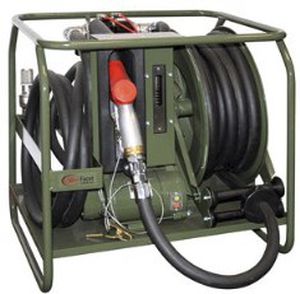

The PECOFacet portable filtration and pumping set is an economical, light and compact packaged unit for the supply of clean, dry fuel to helicopters and light aircraft. The standard unit is fitted with a PECOFacet model VF 21/22-SB filter separator, differential pressure gauge and 12 volt or 24 volt electric pump for a maximum flow of 11.62 gpm (44 lpm). The unit is complete with intake and delivery hoses and comes with a lightweight anti-drip nozzle.
The unit can be run from a 12 volt vehicle battery or from the helicopter's own power supply. A filter monitor can be fitted as an alternative to the standard filter water separator. Quality fuel accessories are available as options to improve and expand your transfer fuel systems for greater convenience and higher accuracies.
Standard Design Features
PECOFacet Model VF 21/22-SB filter separator or monitor
Differential pressure gauge piston type
3/4" (19mm) diameter adjustable plastic suction pipe assembly
High-flow automatic nozzle
Approximate weight: 84 lbs (38 kgs)
Chassis Dimensions: 17¾" x 19" x 20" (450mm x 500mm x 510 mm)
