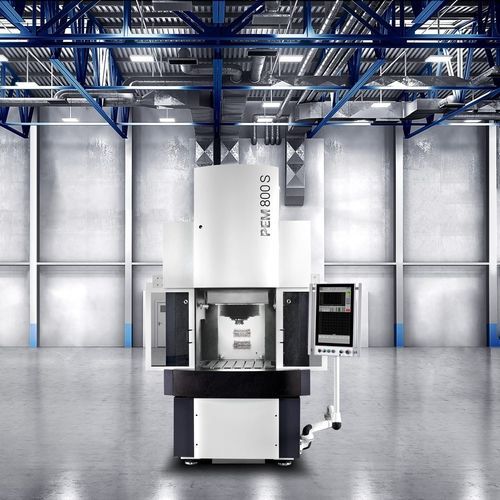

Die sinking electrical discharge machine PEM 800 S
CNCprecision

die sinking electrical discharge machine
die sinking electrical discharge machine
die sinking electrical discharge machine
die sinking electrical discharge machine
die sinking electrical discharge machine
Add to favorites
Compare this product


Characteristics

Type
die sinking
Other characteristics
CNC, precision

Description

The newest high-tech PECM machine of PEMTec is the PEM 800 S. It is more powerful, faster and more precise. With a higher weight and improved pulse rate the machine removes more material. This allows it to produce a larger number of workpieces in a shorter time. Therewith serial production becomes more economical. TECHNICAL DATA Highly rigid high-precision working axes with central direct drive Dynamic and individually programmable process profiles HMI via 21.5“ touchscreen Loading capacity of up to 15 kN Real-time system for process control and short-circuit detection Water-cooled, modular generator from 1,200 A to 12,000 A Temperature compensation for the machine frame and process axis Massive machine frame made from natural granite Workspace 800 mm x 640 mm (W x D) Machine bench 660 mm x 540 mm (W x D) Device-mounting via 6 T-groove tracks (M10) in machine bench Optional XY-adjusting aid, C-axis Automatic electrolyte treatment system CONTROL UNIT The input and control is via a touch screen operator interface developed by PEMTec. PEM CONTROL enables the customer to analyze the process online and evaluate the process.
