Materials analyzer MSA-650 IRIS

pressurebenchtopfor aeronautics

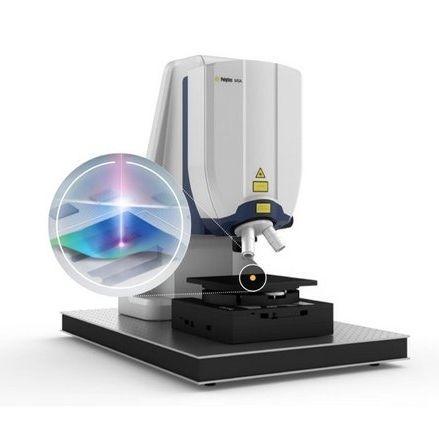

Dynamic characterization of MEMS devices to measure and visualize mechanical response is important for product development, trouble shooting and FE model validation. The MSA Micro System Analyzers from Polytec provide fast, accurate optical measurements of out-of-plane (OOP) and in-plane motion (IP). Until now, this has been limited to unpacked devices that are optically accessible. Now, the Polytec MSA-650 IRIS Micro System Anlayzer allows even measuring through intact silicon caps on encapsulated microstructres like e.g. intertial sensors, MEMS microphones, pressure sensors and more. Highlights IR capability to measure MEMS dynamics through different layers of Si-capped devices Real-time out-of-plane response measurement up to 25 MHz (w/o post-processing) Sub-picometer out-of-plane displacement resolution Straighforward FE model validation of MEMS in final state Superior separation of the individual device layers Stroboscopic video microscope to measure in-plane motion up to 2.5 MHz Automated system that integrates well for production (probe station compatibility) The MSA-650 IRIS turn-key measurement solution comprises a controller, function generator with additional reference channels, powerful optical scanning software suite and optical sensor head with a sophisticated IR-optical design. With its dedicated IR camera and a low-coherence SLD source it is the premier full-field vibration measurement system to capture entire sample layers through silicon caps under operating conditions. This patented interferometer technology delivers excellent data quality due to superior separation of the individual device layers.
