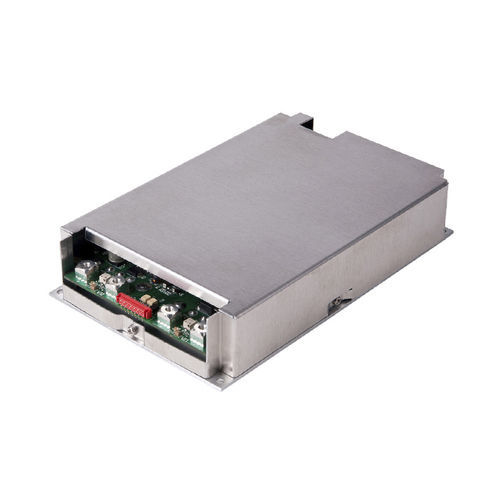

Aircraft power supply PST21B

AC/DC

The PST21B, very compact and low profile 600W AC-DC power supply in chassis format, incorporates input filtering, input and output protections, very robust mechanical mounting and connection, conformal coating and MIL-STD options required in most of the severe environment for industrial, defense applications. The PSU provides high reliability thanks to the integration of Vicor Corp. modules, high efficiency, input-to-output isolation, soft start and active very low inrush circuit, overtemperature protection, input over/undervoltage lockout. The PSU is configurable with 1 to 3 outputs in many output voltages from 3V3 to 54Vdc, other outputs are even possible as semi-standard versions, they are countinuously short-circuit proof. The 100°C baseplate allows operation in high temperature environment. Power : 600W Particularity : Very low profile Approvals : Built to meet EN55022, MILSTD461E CE102, MIL STD-704, MIL-STD 810 see option Application : For severe environment Dimensions : 200 x 127 x 40mm Markets : Industry, Defence, Avionic
