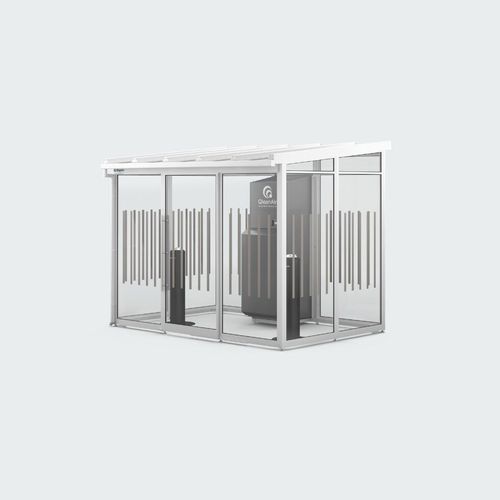

Airport smoking cabin SL 12

outdoormodular designaluminium

Overview
The QleanAir SL 12 is an outdoor smoking lounge designed to capture and remove cigarette smoke, preventing it from spreading into adjacent public areas, building entrances or the outdoor environment. It supports controlled ventilation for up to 12 users and prevents fresh-air intakes from drawing in smoke.

Key components

• Multi-stage particle and gas filtration (particle filters ePM1 60% (F7) + EPA 10; activated carbon for gases)
• Airflow capacity up to 2000 m³/h
• Capacity for up to 12 simultaneous persons (service capacity up to 18,000 cigarettes)
• Constant airflow regulation with IR sensor for energy saving
• LED lighting and sliding accessibility door
• Fireproof patented QleanAir QleanUp ash handling system
• Weatherproof aluminum/glass/steel construction with snow load rating 600 kg/m²

Features / Benefits

• Contains and captures cigarette smoke at source to protect non-smokers and improve nearby public spaces and entrances
• Removes odors and harmful particles before air is returned to the environment
• Patented QleanUp system collects and extinguishes cigarette ends, reducing litter and fire risk
• Modular, weather-resistant design enables flexible placement at airports, care facilities, shopping centers, industrial sites and other outdoor locations
• Simple installation and sensor-based operation reduce maintenance and energy use

Technology

• 1. Capture: Push–pull airflow draws polluted air into the enclosure and toward the filtration unit
• 2. Filtration: Multi-stage particle filters plus activated carbon remove particles, gases and tobacco-specific odors
• 3. Clean air return: Filtered air is returned to the outdoor environment
• 4. Ash handling: Airtight patented valve (QleanUp) secures and extinguishes cigarette ends without smoke residue

Product details (table)
Model: QleanAir SL 12
Color: (not specified)
Dimensions (W × H × D): 3100 × 2560 × 2420 mm
Assembly height: 3000 mm
Material: Aluminum / glass / steel
Weight: 700 kg
Capacity: Up to 18,000 cigarettes/service
Smokers: Up to 12 persons
Airflow: Up to 2000 m³/h
Particle filters: ePM1 60% (F7) + EPA 10
Gas filters: Activated carbon filters
Sound level: <30–52 dB(A)
Power supply: 200–240 V, ~50–60 Hz
Energy consumption: 5–730 W
Control: IR sensor
Certifications and compliance: performance guarantee, ISO indications, CE

Technical specifications

• Model: QleanAir SL 12
• Dimensions (W × H × D): 3100 × 2560 × 2420 mm
• Assembly height: 3000 mm
• Material: Aluminum, glass, steel
• Weight: 700 kg
• Maximum occupant capacity: up to 12 persons
• Service capacity (cigarettes): up to 18,000 cigarettes/service
• Airflow capacity: up to 2000 m³/h
• Particle filtration: ePM1 60% (F7) + EPA 10
• Gas filtration: activated carbon filters for odors and gases
• Sound level during operation: <30–52 dB(A)
• Power supply: 200–240 V, ~50–60 Hz
• Energy consumption range: 5–730 W
• Controls: IR sensor for regulation and energy saving
• Weather robustness: sturdy, weatherproof construction; snow load rating 600 kg/m²
• Additional features: LED lighting, sliding accessibility door, gutter for rain/snow, optional heater
• Safety: fireproof, patented QleanUp ash handling system (airtight valve solution)
• Certifications: ISO indications, CE marking and performance guarantee
