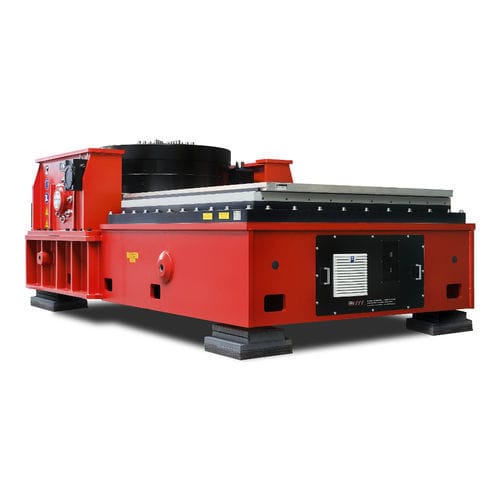

Vibration testing machine SW9500

electricnoisematerials

Our systems of the SW9500 series shakers suits perfect for testing large-sized test objects with high mass e.g. in the development of battery electric vehicle. The special geometry of the magnetic frame allows a high level of excitation force with minimal energy consumption.The wear-free return spring system works without rollers or roller-like additives. This is why this RMS system has a high degree of lateral rigidity despite a travel amplitude of 76 mm pk-pk. And of course, the SW9500 series meets all current standards from the automotive, aerospace and consumer industries. Designed for continuous 24/7 use under full load, the shakers in this series ensure maximum operational stability and are also particularly low-maintenance. HIGHLIGHTS AT A GLANCE Up to 140 kN Sine/ Noise Up 320 kN Shock Force 3,5 m/s for 100g / 11 ms Shocks Quite Shaker: only 57dBA emission Quite Amplifier: only 65dBA emission High precision: to full power without significant noise (68db signal to noise) thanks to SIC Fully automatic center positioning ECO mode for maximum energy savings Complies with enev2016 and iso14001 Water cooling makes it more energy-efficient and space-saving Modular & compact design with many expansion stages
