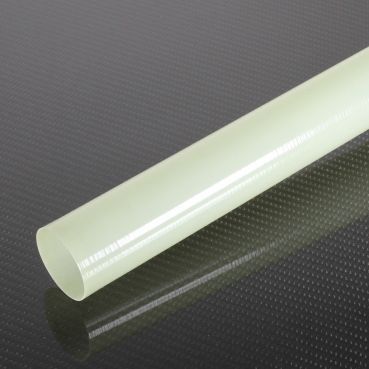

Fabric tube 45558-FG
carbon fiberfiberglassmultiple

fabric tube
fabric tube
fabric tube
fabric tube
fabric tube
Add to favorites
Compare this product


Characteristics

Material
fabric, carbon fiber, fiberglass
Other characteristics
multiple, large
Applications
for aerospace applications

Description

Unlike metals which have similar properties in all directions (isotropic), the properties of composites are varying, dependent on the orientation of the fibers in each layer. Roll wrapped tubing is manufactured using multiple layers of pre-preg carbon fiber (and if noted, other) materials. In general each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers(plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high performance, engineered product. Fabric Tubing has an outer ply of woven material (denoted below as 0°/90°). Typically this outer ply is a 2x2 twill weave (diagonal appearance seen below) but it can also be a plain weave (small checkerboard), spread tow (large format plain weave / checkerboard) or other off-axis weave such as a braid. The core of these tubes are almost always comprised of multi-directional "uni" plies. Uni Tubing is comprised of multi-directional "uni" plies just like the fabric tubes however instead of the outer ply being fabric, it is unidirectional and most typically oriented at 0° (fibers running the length). *This diagram illustrates a "generic" layup. The SKU being viewed may not have the layup schedule shown in this diagram. To view this SKU's particular layup please check out the "LAYUP ORIENTATION" tab.
