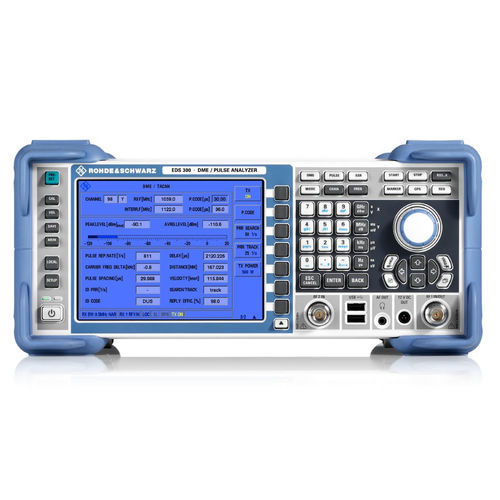

Signal analyzer EDS300

powerbenchtopfor aeronautics

High-precision TX/RX measurements on TACAN and DME systems In line with ICAO Doc. 8071, ICAO Annex 10, STANAG 5034 and MIL-STD-291C Receiver aquisition sensitivity –97 dBm 0.01 NM distance measurement uncertainty down to –80 dB 0.2° TACAN bearing deviation for input levels ≥ –80 dBm Flight inspection on TACAN and DME stations 0.2° TACAN bearing deviation for input levels ≥ –80 dBm Vérification of pulsed navigation signais Commi88ioning and regular checks High-precision distance and level measurements on DME ground stations Accurate analysis of military TACAN stations High dynamic range of 105 dB Detailed analysis in line with ICAO requirements, STANAG and MIL-STD Expanded functionality and adaptation Diverse hardware and software options Précisé distance measurements on the ground and in the air High-performance multi-DME mode for measuring up to ten DME stations (R&S®EDS-K5) Simultaneous measurement of two différent signais using an additional RX unit (R&S®EDS-B1) Flight inspection with integrated high-power interrogator (R&S®EDS-B4) Modulation and signal analysis of TACAN ground stations (R&S®EDS-K1) GPS-based measurements (R&S®EDS-K3) User-friendly design Application-specific extras Compact, robust design for stationary and mobile applications Remote control via LAN interface Easy measurement data transfer via USB data logger Various synchronization capabilities for intégration into existing flight inspection systems Maintenance, repair and service
