Reporting software ScopeSuite+

automationtestanalysis

Product overview
Simplify compliance testing with R&S®ScopeSuite+ software that supports various digital interface standards such as 10Base-T1S and 100Base-T1 Automotive Ethernet. The intuitive web-based GUI includes a collapsible test case tree for easy navigation, a built-in step-by-step test wizard with visual guidance, a limit editor, pre-test checks, pass/fail indicators and comprehensive, customizable test reports including results and screenshots for post-test analysis.

Key facts

• Fully automated compliance test software
• Web based GUI for easy navigation and setup
• Step-by-step wizard for clear user guidance
• Clear and comprehensive test documentation
• Automation of oscilloscopes, VNAs and waveform generators

Features & benefits
Comprehensive support for multiple digital interface standards
R&S®ScopeSuite+ streamlines automation for various digital interface standards, including 10BASE-T1S and 100BASE-T1. The solution is aligned with leading industry test specifications such as IEEE 802.3 and OpenAlliance and encompasses all pertinent test cases. The software home page lists supported standards for easy reference.

Fully automated test solution
R&S®ScopeSuite+ completely controls connected oscilloscopes (for example R&S®MXO5/5C, R&S®RTO/RTP) for seamless compliance testing and precise measurements. Selected test cases can require additional instruments such as waveform generators and vector network analyzers; the software provides comprehensive control for an integrated end-to-end compliance test solution.

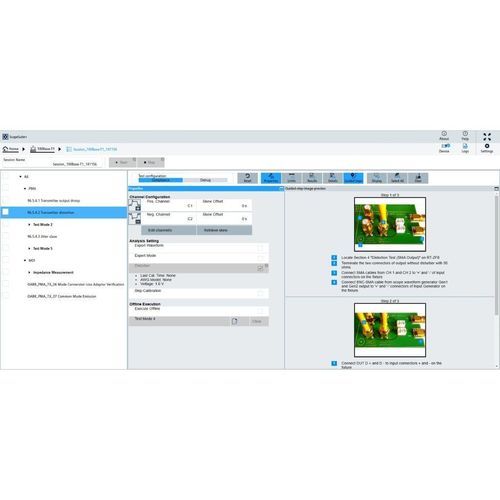

Guided test steps
Detailed, image-based instructions let users configure oscilloscope setups, probes, test fixtures and the device under test easily and correctly, minimizing setup-related errors.

Reports at the click of a button
All test results are fully documented in a PDF test report. Reports can include specific test cases, numerical result data and instrument screenshots based on user preferences.

Available models

• R&S®SPLUS — Base software; fully automated compliance testing; Order number 1804.8800.02
• R&S®SPLUS-K105 — Order number 1804.8951.02
• R&S®SPLUS-K89 — 10BASE-T1S automotive Ethernet compliance test software; Order number 1804.8780.02
• R&S®SPLUS-K24 — 100BASE-T1 automotive Ethernet compliance test software; Order number 1804.8774.02
• R&S®SPLUS-K87 — 1000BASE-T1 automotive Ethernet compliance test software; Order number 1804.8797.02
• R&S®SPLUS-K107 — GMSL compliance test software; Order number 1804.8968.02
• R&S®SPLUS-K99 — Remote automation API for R&S®ScopeSuite+; Order number 1804.8945.02

Characteristics / technical specifications

• Supported instruments:
  Oscilloscopes — R&S®MXO5, R&S®MXO5C, R&S®RTO2000, R&S®RTO6, R&S®RTP
  Vector network analyzers — R&S®ZND, R&S®ZNB
• Minimum system requirements:
  Operating system — Windows 10, 64bit; Windows 11, 64bit
  RAM — ≥ 8 GByte
  Disk space — ≥ 5 GByte
  Instrument connection — LAN
